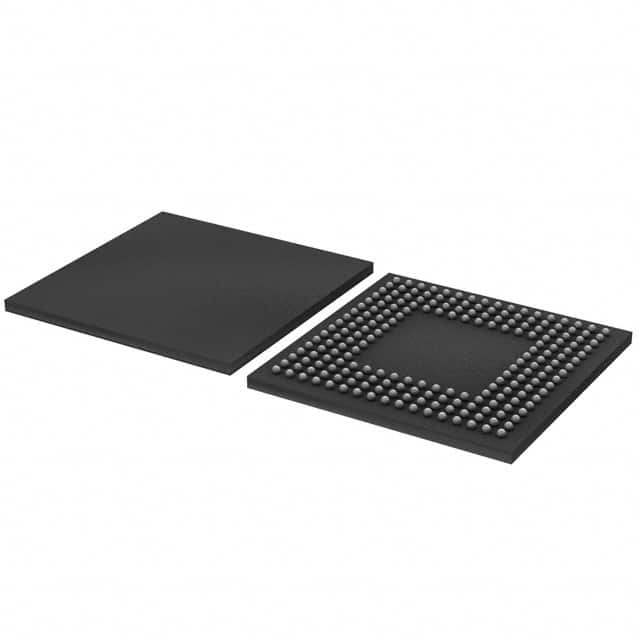

LPC4078FET208,551
IC MCU 32BIT 512KB FLSH 208TFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC40xx series microcontroller, part number LPC4078FET208-551, features an ARM Cortex-M4 32-bit single-core processor operating at 120MHz. This device offers 512KB of FLASH program memory and 96KB of RAM. It includes a comprehensive suite of peripherals such as CANbus, Ethernet, I2C, SPI, UART, and USB with OTG support, along with an 8-channel 12-bit Analog-to-Digital converter and a 10-bit Digital-to-Analog converter. Designed for surface mount applications, it is housed in a 208-TFBGA (15x15) package. The operating temperature range is -40°C to 85°C. This microcontroller is suitable for applications in automotive, industrial automation, and consumer electronics.
Additional Information
Series: LPC40xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 96K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4032 x 8 |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 208-TFBGA (15x15) |
| Number of I/O | 165 |
| Programmable | Not Verified |
