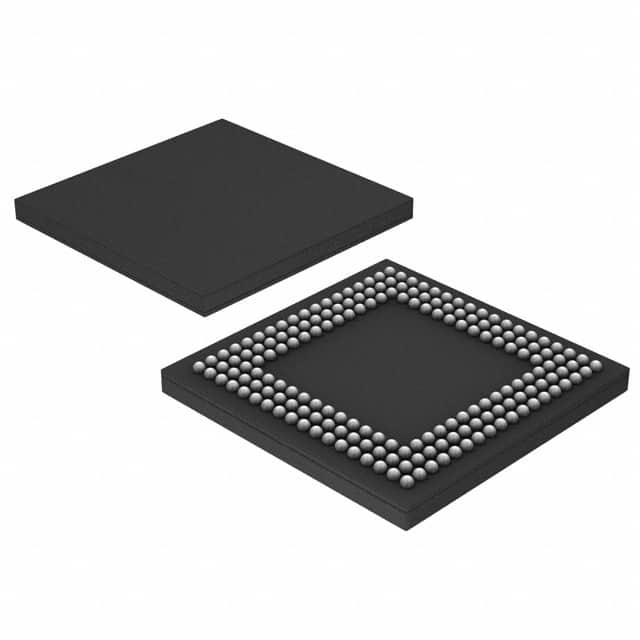

LPC4078FET180,551
IC MCU 32BIT 512KB FLSH 180TFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC40xx series microcontroller, part number LPC4078FET180-551, features an ARM Cortex-M4 32-bit single-core processor operating at 120MHz. This device offers 512KB of FLASH program memory and 96KB of RAM, with an additional 4KB of EEPROM. Integrated peripherals include CANbus, Ethernet, I2C, SPI, UART/USART, and USB OTG connectivity, along with data converters (8x12b A/D, 1x10b D/A). Designed for surface mounting, it is housed in a 180-TFBGA package. The component operates within a voltage range of 2.4V to 3.6V and a temperature range of -40°C to 85°C. Applications span automotive, industrial automation, and consumer electronics.
Additional Information
Series: LPC40xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 180-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 96K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4032 x 8 |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 180-TFBGA (12x12) |
| Programmable | Not Verified |
