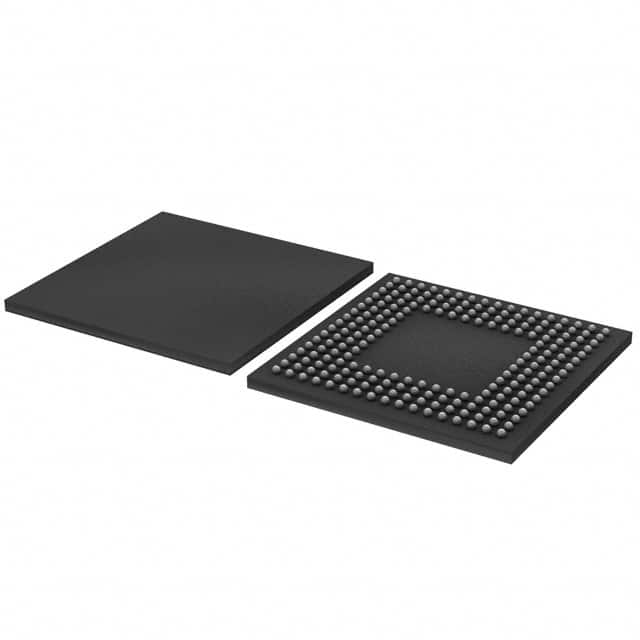

LPC3154FET208,551
IC MCU 16/32BIT ROMLESS 208TFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC3100 series microcontroller, part number LPC3154FET208-551. This 16/32-bit ARM9® core processor operates at 180MHz, featuring a ROMless architecture. It includes 192KB of RAM and a 3x10-bit Analog-to-Digital converter array. Connectivity options encompass EBI/EMI, I2C, IrDA, Memory Card, PCM, SPI, UART/USART, and USB OTG. Peripherals include DMA, I2S, LCD, PWM, and WDT. This surface mount component is supplied in a 208-TFBGA (12x12) package, suitable for operation within a temperature range of -40°C to 85°C. Its voltage supply range is 1.1V to 3.6V. Applications can be found in consumer electronics and industrial automation.
Additional Information
Series: LPC3100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | - |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | ARM9® |
| Data Converters | A/D 3x10b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.1V ~ 3.6V |
| Connectivity | EBI/EMI, I2C, IrDA, Memory Card, PCM, SPI, UART/USART, USB OTG |
| Peripherals | DMA, I2S, LCD, PWM, WDT |
| Supplier Device Package | 208-TFBGA (12x12) |
| Number of I/O | 10 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
LPC3152FET208,551
IC MCU 16/32BIT ROMLESS 208TFBGA
LPC3130FET180,551
IC MCU 16/32BIT ROMLESS 180TFBGA

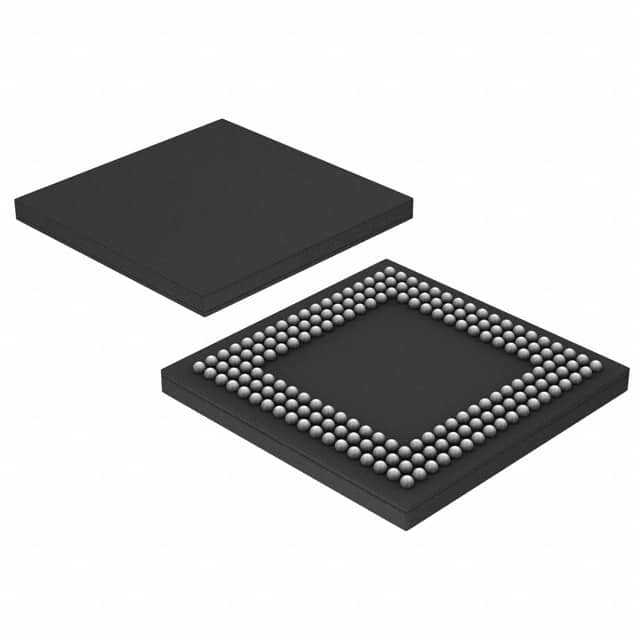

LPC3131FET180,551
