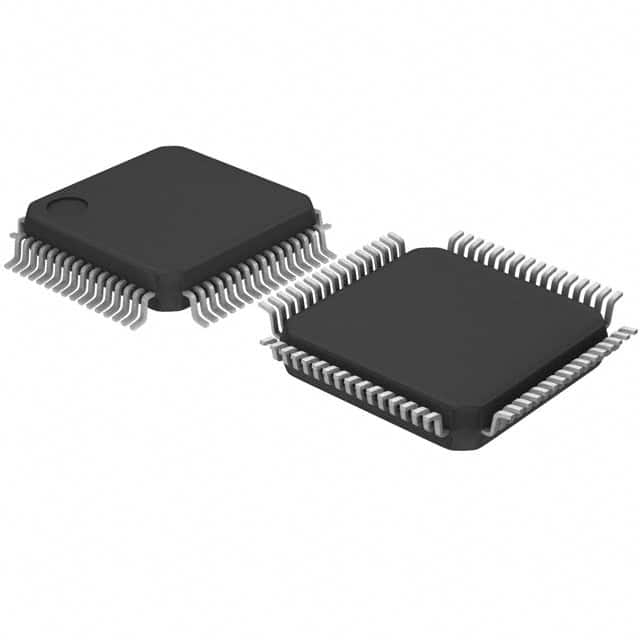

LPC2146FBD64,557
IC MCU 16/32B 256KB FLASH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. LPC2100 series microcontroller, part number LPC2146FBD64-557, features an ARM7TDMI-S core operating at 60MHz. This 16/32-bit device offers 256KB of FLASH program memory and 40KB of RAM. On-chip peripherals include a 14-channel 10-bit Analog-to-Digital converter and a 10-bit Digital-to-Analog converter. Connectivity options comprise I2C, Microwire, SPI, SSI, SSP, UART/USART, and USB. The microcontroller supports various peripherals such as Brown-out Detect/Reset, DMA, POR, PWM, and WDT. Mounting is via surface mount within a 64-LQFP (10x10) package. Its operational temperature range is -40°C to 85°C. This component finds application in industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: LPC2100RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 40K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM7® |
| Data Converters | A/D 14x10b; D/A 1x10b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | I2C, Microwire, SPI, SSI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 64-LQFP (10x10) |
| Number of I/O | 45 |
| Programmable | Not Verified |
