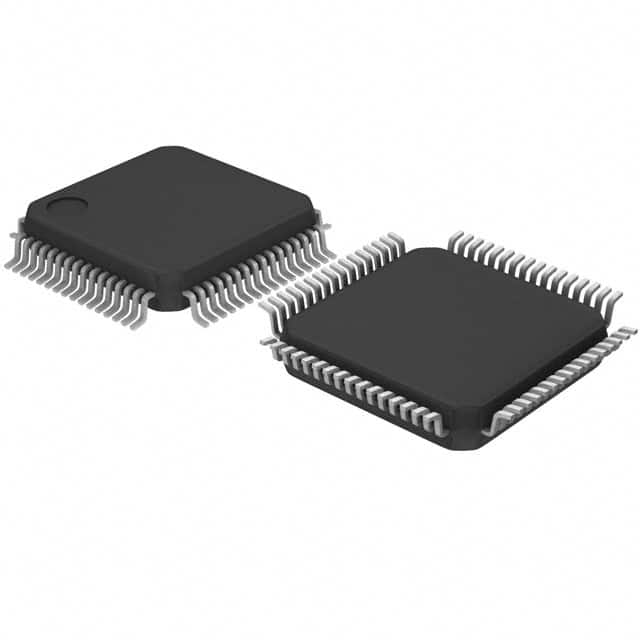

LPC2136FBD64,151
IC MCU 16/32B 256KB FLASH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC2100 series microcontroller, part number LPC2136FBD64-151. This ARM7® core device operates at 60MHz with a 16/32-bit architecture. It features 256KB of FLASH program memory and 32KB of RAM. Connectivity options include I2C, Microwire, SPI, SSI, SSP, and UART/USART. The LPC2136FBD64-151 includes analog capabilities with sixteen 10-bit SAR ADCs and one 10-bit DAC. Peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. It is supplied in a 64-LQFP (10x10) package for surface mounting. This component is designed for applications in industrial automation, consumer electronics, and telecommunications. Operating temperature range is -40°C to 85°C.
Additional Information
Series: LPC2100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM7® |
| Data Converters | A/D 16x10b SAR; D/A 1x10b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | I2C, Microwire, SPI, SSI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 64-LQFP (10x10) |
| Grade | - |
| Number of I/O | 47 |
| Programmable | Not Verified |
| Qualification | - |
