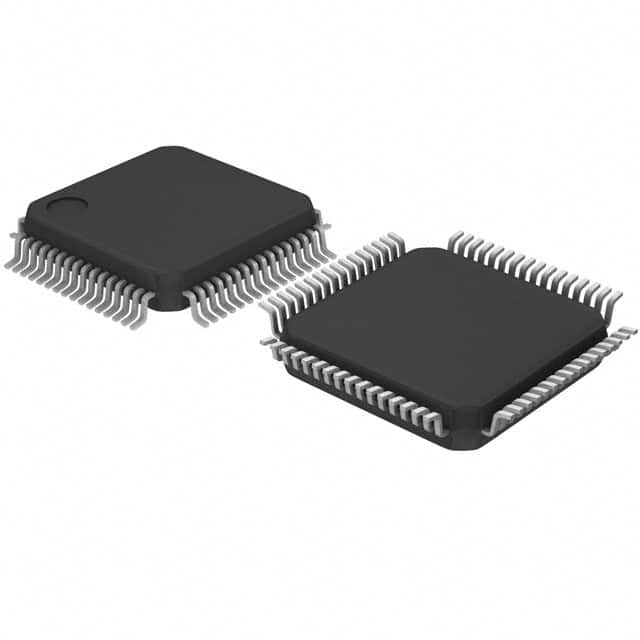

LPC2131FBD64,151
IC MCU 16/32BIT 32KB FLSH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. LPC2100 series microcontroller, part number LPC2131FBD64-151, features an ARM7® core operating at 60MHz. This 16/32-bit device offers 32KB of FLASH program memory and 8KB of RAM. Integrated peripherals include an 8-channel 10-bit SAR Analog-to-Digital converter and a 10-bit Digital-to-Analog converter. Connectivity options encompass I2C, Microwire, SPI, SSI, SSP, and UART/USART interfaces. The microcontroller supports Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT) peripherals. Supplied in a 64-LQFP (10x10) package for surface mounting, it operates from a 3V to 3.6V supply and is rated for an operating temperature range of -40°C to 85°C. This component finds application in various embedded systems, including industrial automation and consumer electronics.
Additional Information
Series: LPC2100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 8K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM7® |
| Data Converters | A/D 8x10b SAR; D/A 1x10b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | I2C, Microwire, SPI, SSI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Supplier Device Package | 64-LQFP (10x10) |
| Grade | - |
| Number of I/O | 47 |
| Programmable | Not Verified |
| Qualification | - |
