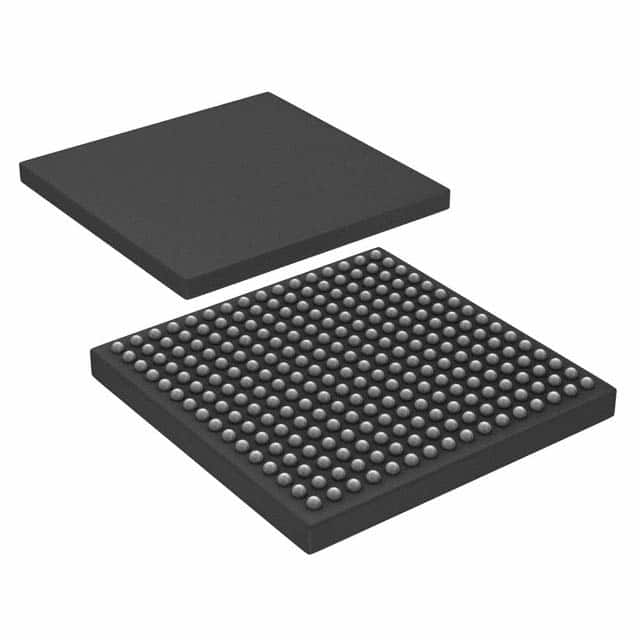

LPC18S57JET256E
IC MCU 32BIT 1MB FLASH 256LBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC18xx series microcontroller, part number LPC18S57JET256E. This 32-bit, single-core ARM Cortex-M3 microcontroller operates at 180MHz and features 1MB of FLASH program memory with 136KB of RAM. It includes extensive connectivity options such as CANbus, Ethernet, I2C, SPI, UART/USART, and USB. The device is packaged in a 256-LBGA (17x17) for surface mounting. Integrated peripherals include DMA, I2S, LCD controllers, PWM, and a watchdog timer. Data conversion capabilities include 8x10-bit ADCs and 1x10-bit DAC. This component is suitable for applications in industrial automation, automotive, and consumer electronics. Operating temperature range is -40°C to 105°C.
Additional Information
Series: LPC18xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 136K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 8x10b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, MMC/SD, SPI, SSI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 256-LBGA (17x17) |
| Number of I/O | 164 |
| Programmable | Not Verified |
