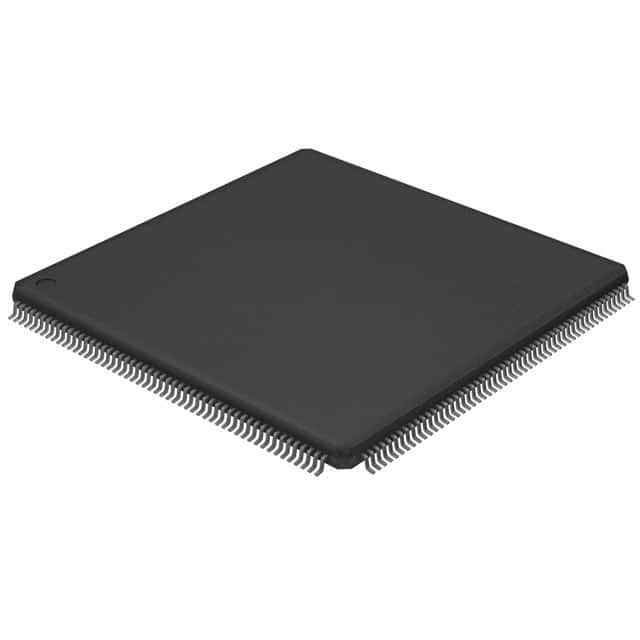

LPC18S57JBD208E
IC MCU 32BIT 1MB FLASH 208LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. LPC18S57JBD208E is a 32-bit microcontroller featuring an ARM Cortex-M3 core operating at up to 180MHz. This Series component offers 1MB of FLASH program memory and 136KB of RAM. Connectivity options include CANbus, Ethernet, I2C, SPI, UART, and USB. Peripherals include DMA, I2S, and PWM. The device is housed in a 208-LQFP package, suitable for surface mounting. Key applications span industrial automation, high-end consumer electronics, and automotive systems. The operating temperature range is -40°C to 105°C.
Additional Information
Series: LPC18xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 136K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 8x10b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, MMC/SD, SPI, SSI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 208-LQFP (28x28) |
| Number of I/O | 142 |
| Programmable | Not Verified |
