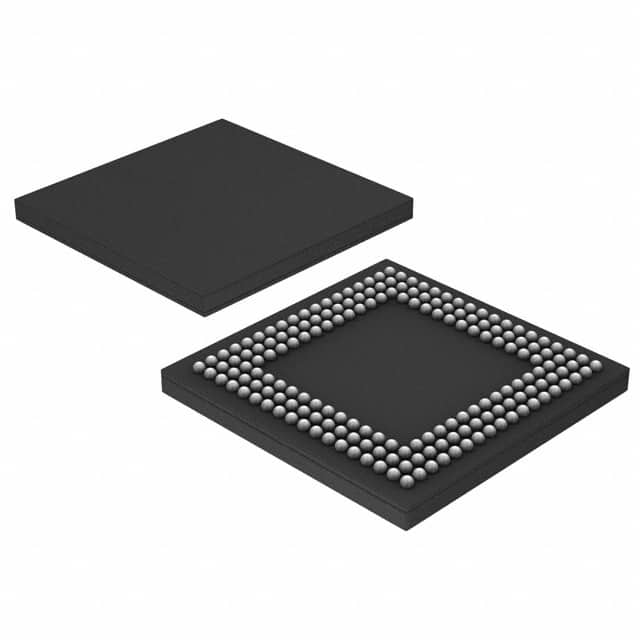

LPC18S50FET180E
IC MCU 32BIT ROMLESS 180TFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. presents the LPC18S50FET180E, a 32-bit ARM Cortex-M3 based microcontroller from the LPC18xx series. This ROMless device operates at a maximum frequency of 180MHz, featuring a 32-bit single-core architecture. The LPC18S50FET180E offers 200KB of RAM and includes a comprehensive suite of peripherals such as CANbus, Ethernet, I2C, SPI, UART, and USB connectivity. It also incorporates data conversion capabilities with 8x10-bit Analog-to-Digital converters and a 1x10-bit Digital-to-Analog converter. Additional peripherals include DMA, I2S, LCD support, and PWM. This component is supplied in a 180-TFBGA (12x12) package suitable for surface mounting and operates within a voltage range of 2.2V to 3.6V. The LPC18xx series finds application in demanding sectors including industrial automation, automotive, and consumer electronics.
Additional Information
Series: LPC18xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 180-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | - |
| RAM Size | 200K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 8x10b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, MMC/SD, SPI, SSI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 180-TFBGA (12x12) |
| Number of I/O | 118 |
| Programmable | Not Verified |
