LPC1837JET100E
IC MCU 32BIT 1MB FLASH 100TFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More

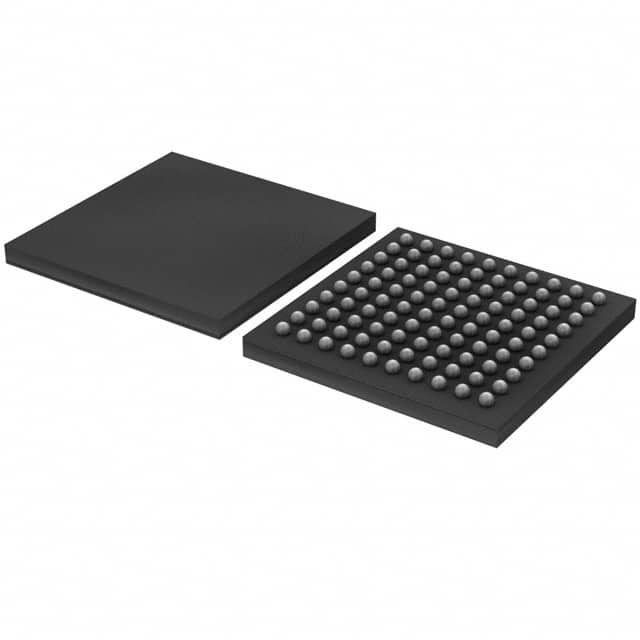

The NXP USA Inc. LPC1837JET100E is a 32-bit ARM Cortex-M3 microcontroller, operating at 180MHz. This single-core processor features 1MB of FLASH program memory and 136KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, and USB with OTG support. It incorporates a 4x10-bit Analog-to-Digital converter and a 1x10-bit Digital-to-Analog converter, alongside 16KB of EEPROM. Peripherals such as Brown-out Detect/Reset, DMA, I2S, POR, and WDT are integrated. The component is housed in a 100-TFBGA (9x9) package, suitable for surface mounting, and operates within a temperature range of -40°C to 105°C. Its robust feature set makes it suitable for applications in automotive, industrial control, and consumer electronics.
Additional Information
Series: LPC18xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 136K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 4x10b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, WDT |
| Supplier Device Package | 100-TFBGA (9x9) |
| Number of I/O | 49 |
| Programmable | Not Verified |
