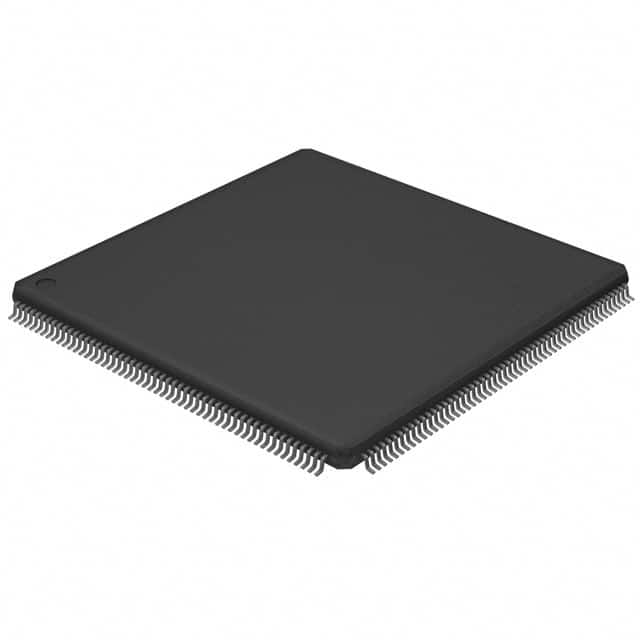

LPC1788FBD208,551
IC MCU 32BIT 512KB FLASH 208LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. LPC17xx series microcontroller, part number LPC1788FBD208-551, features an ARM Cortex-M3 32-bit core operating at 120MHz. This device offers 512KB of FLASH program memory and 96KB of RAM, along with 4KB of EEPROM. Connectivity options include CANbus, Ethernet, I2C, SPI, UART/USART, and USB OTG. Peripherals include DMA, I2S, LCD controller, motor control PWM, and a watchdog timer. This surface-mount component is housed in a 208-LQFP package. Its robust feature set makes it suitable for applications in industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: LPC17xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 96K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, Motor Control PWM, POR, PWM, WDT |
| Supplier Device Package | 208-LQFP (28x28) |
| Number of I/O | 165 |
| Programmable | Not Verified |
