LPC1768FET100Z
IC MCU 32BIT 512KB FLSH 100TFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More

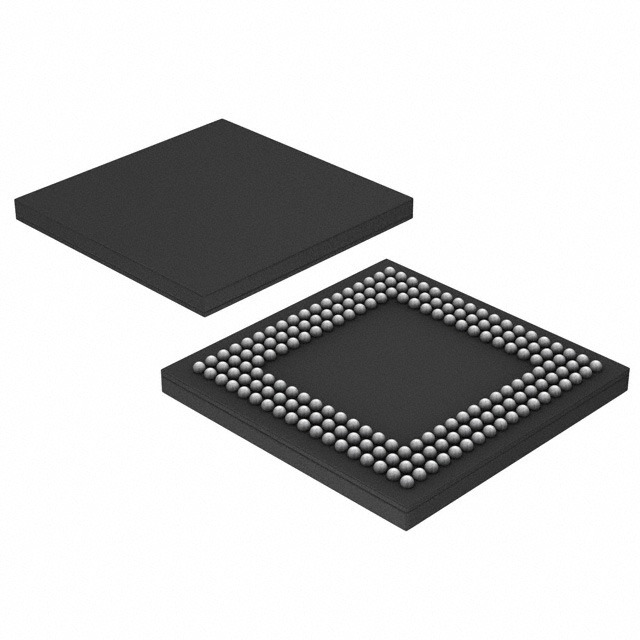

NXP USA Inc. LPC17xx series microcontroller, part number LPC1768FET100Z. This 32-bit ARM Cortex-M3 core microcontroller operates at 100MHz, featuring 512KB of FLASH program memory and 64KB of RAM. The device supports a wide range of connectivity options including CANbus, Ethernet, I2C, SPI, UART, and USB OTG. Integrated peripherals include DMA, I2S, and motor control PWM. The LPC1768FET100Z is housed in a 100-TFBGA (9x9) package for surface mounting. It is suitable for applications in industrial automation, automotive, and consumer electronics. The operating temperature range is -40°C to 85°C.
Additional Information
Series: LPC17xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | CANbus, Ethernet, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT |
| Supplier Device Package | 100-TFBGA (9x9) |
| Number of I/O | 70 |
| Programmable | Not Verified |
