LPC1765FET100,551
IC MCU 32BIT 256KB FLSH 100TFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More

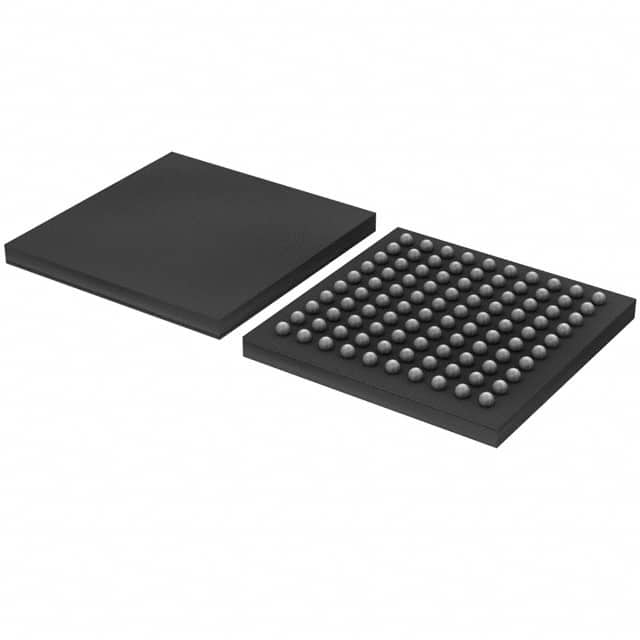

NXP USA Inc. LPC17xx series microcontroller, part number LPC1765FET100-551. This 32-bit ARM Cortex-M3 core microcontroller operates at 100MHz and features 256KB of FLASH program memory. It includes 64KB of RAM and is housed in a 100-TFBGA (9x9) package for surface mounting. Key peripherals include CANbus, I2C, SPI, UART/USART, and USB OTG connectivity, along with I2S, DMA, and various timer/PWM capabilities. The device supports up to 70 I/O pins and offers integrated 8x12-bit Analog-to-Digital converters and a 1x10-bit Digital-to-Analog converter. Operating voltage is between 2.4V and 3.6V, with an operating temperature range of -40°C to 85°C. This component is commonly found in industrial automation, consumer electronics, and automotive applications.
Additional Information
Series: LPC17xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | CANbus, I2C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT |
| Supplier Device Package | 100-TFBGA (9x9) |
| Number of I/O | 70 |
| Programmable | Not Verified |
