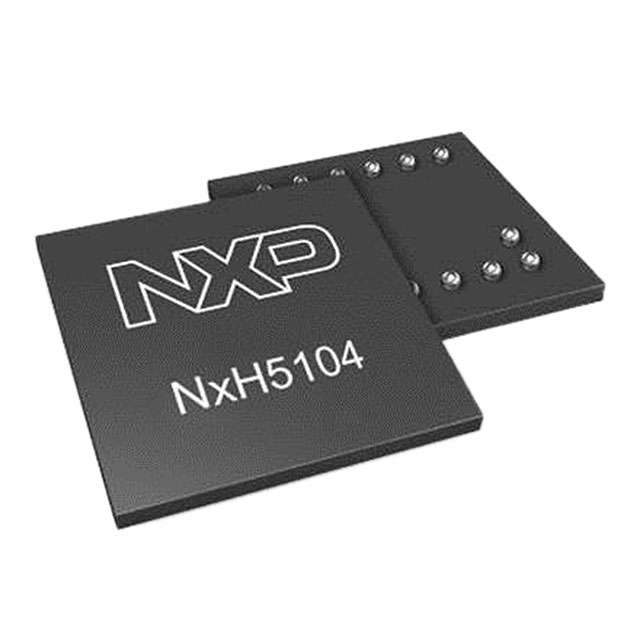

NXH5104UK/A1Z
IC EEPROM 4MBIT SPI 13WLCSPManufacturer: NXP USA Inc.
Categories: Memory
Quality Control: Learn More
NXP USA Inc. NXH5104UK-A1Z is a 4Mbit non-volatile EEPROM memory device featuring a standard SPI interface. This component is organized as 512K x 8 and operates with a clock frequency of up to 10 MHz. The device supports a wide supply voltage range from 1V to 2.6V, with an operating temperature range of -20°C to 85°C. Its compact 13-WLCSP package, measuring 2.8x2.74mm, is ideal for space-constrained applications. This memory solution is well-suited for use in industrial, automotive, and consumer electronics segments requiring reliable data storage. The NXH5104UK-A1Z is supplied in a Tape & Reel (TR) package for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 13-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Memory Size | 4Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Supply | 1V ~ 2.6V |
| Technology | EEPROM |
| Clock Frequency | 10 MHz |
| Memory Format | EEPROM |
| Supplier Device Package | 13-WLCSP (2.8x2.74) |
| Write Cycle Time - Word, Page | - |
| Memory Interface | SPI |
| Memory Organization | 512K x 8 |
| Programmable | Not Verified |
