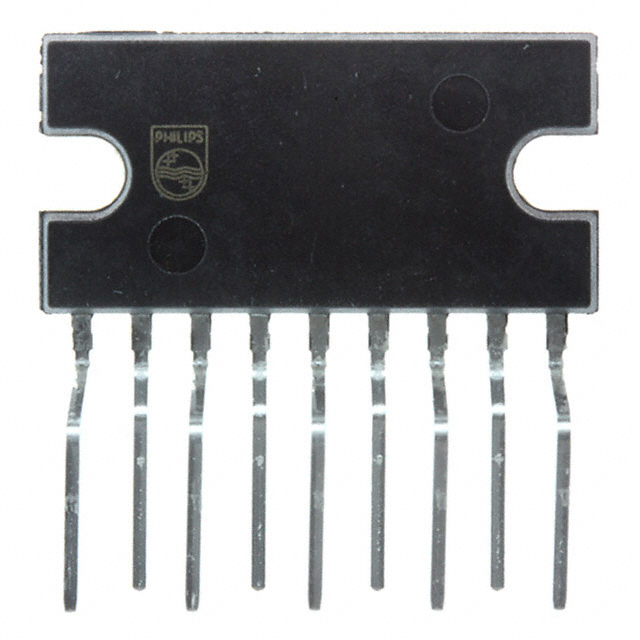

TDA3617J/N1,112
IC REG LINEAR 9V/5V/3.3V 9-PDBSManufacturer: NXP USA Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
NXP USA Inc. TDA3617J-N1-112 is a three-output positive fixed linear voltage regulator. This component delivers regulated outputs of 9V, 5V, and 3.3V, with maximum output currents of 1.3A, 600mA, and 300mA respectively. The device features enable and hold control inputs, and offers comprehensive protection against load dump, over current, over temperature, short circuit, and transient voltage conditions. With a quiescent current of 40 µA and a power-supply rejection ratio (PSRR) of 70dB at 3kHz, it is suitable for automotive and industrial applications requiring stable voltage regulation. The TDA3617J-N1-112 is supplied in a 9-PDBS package, designed for through-hole mounting. Maximum input voltage is 17.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 9-SIP Formed Leads |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1.3A, 600mA, 300mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 40 µA |
| Voltage - Input (Max) | 17.5V |
| Number of Regulators | 3 |
| Supplier Device Package | 9-PDBS |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 9V, 5V, 3.3V |
| Control Features | Enable, Hold |
| PSRR | 70dB (3kHz) |
| Voltage Dropout (Max) | 1V @ 1.3A, 1.5V @ 600mA, - |
| Protection Features | Load Dump, Over Current, Over Temperature, Short Circuit, Transient Voltage |
