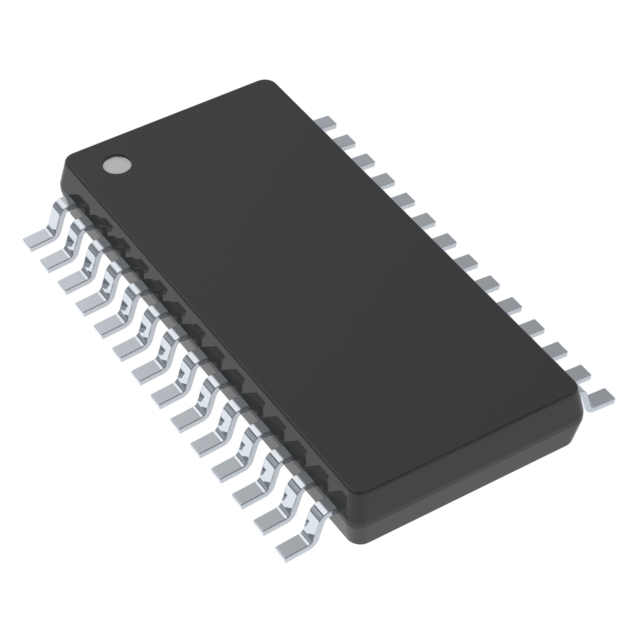

PCU9655PW,518
IC LED DRV LIN PWM 100MA 28TSSOPManufacturer: NXP USA Inc.
Categories: LED Drivers
Quality Control: Learn More
NXP USA Inc. PCU9655PW-518 is a 16-output linear LED driver featuring PWM dimming for precise control. This device delivers up to 100mA per channel and supports output voltages up to 40V. Designed for surface mount applications, it is supplied in a 28-TSSOP package, presented on tape and reel. The PCU9655PW-518 operates within a supply voltage range of 3V to 5.5V and is rated for an operating temperature of -40°C to 85°C. Its integrated switch functionality and linear topology make it suitable for demanding backlight applications in various consumer electronics and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Voltage - Output | 40V |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Frequency | - |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 100mA |
| Internal Switch(s) | Yes |
| Topology | - |
| Supplier Device Package | 28-TSSOP |
| Dimming | PWM |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
