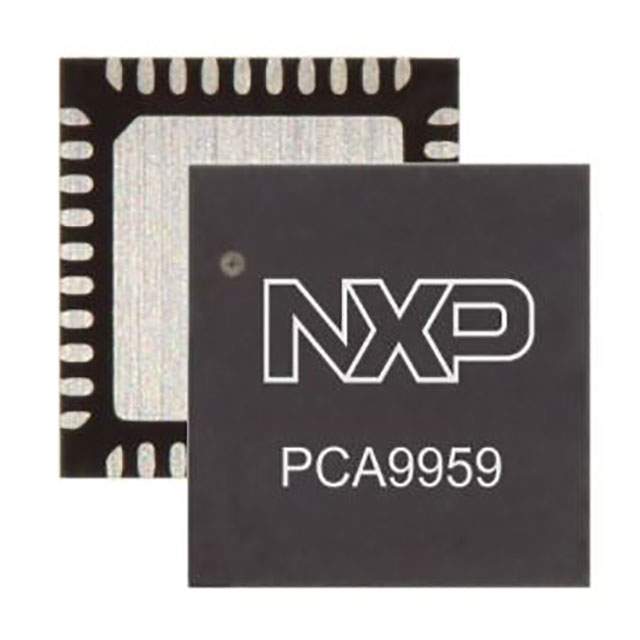

PCA9959HNMP
IC LED DRVR LIN DIM 63MA 40HVQFNManufacturer: NXP USA Inc.
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 24 Output Linear Constant Current Yes Dimming 63mA 40-HVQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Voltage - Output | 0.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 24 |
| Frequency | 20MHz |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight, Lighting |
| Current - Output / Channel | 63mA |
| Internal Switch(s) | No |
| Topology | Constant Current |
| Supplier Device Package | 40-HVQFN (5x5) |
| Dimming | Yes |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
