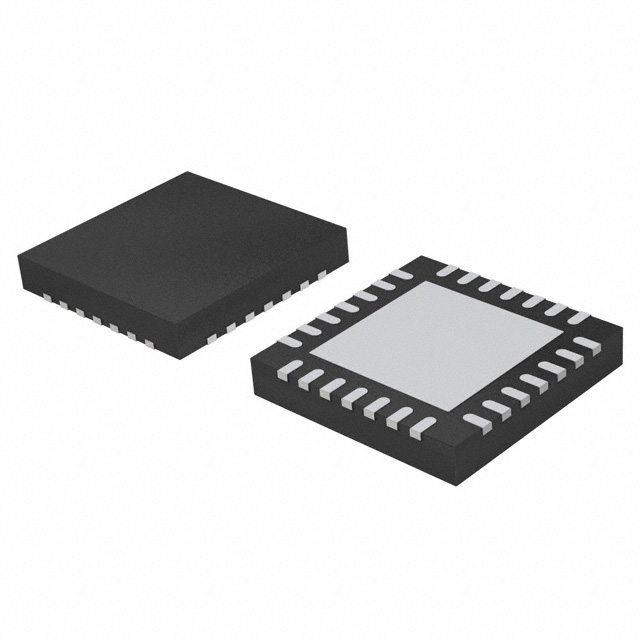

PCA9685BS,118
IC LED DRVR LIN PWM 25MA 28HVQFNManufacturer: NXP USA Inc.
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 16 Output Linear PWM Dimming 25mA 28-HVQFN (6x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VQFN Exposed Pad |
| Voltage - Output | 5.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Frequency | - |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 25mA |
| Internal Switch(s) | Yes |
| Topology | - |
| Supplier Device Package | 28-HVQFN (6x6) |
| Dimming | PWM |
| Voltage - Supply (Min) | 2.3V |
| Voltage - Supply (Max) | 5.5V |
