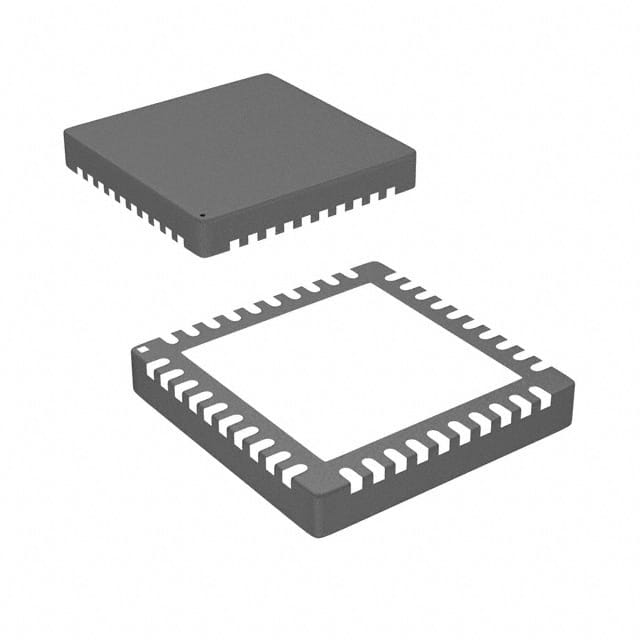

MC34844AEPR2
IC LED DRVR RGLTR PWM 80MA 32QFNManufacturer: NXP USA Inc.
Categories: LED Drivers
Quality Control: Learn More
NXP USA Inc. presents the MC34844AEPR2, a 10-output DC-DC boost LED driver. This device integrates analog and PWM dimming capabilities, offering precise control over LED illumination. Each output channel is capable of delivering up to 80mA of current. The internal switch facilitates efficient operation in a step-up (boost) topology, supporting output voltages ranging from 8V to 60V, with a supply voltage range of 7V to 28V. The MC34844AEPR2 is housed in a 32-QFN-EP (5x5) package, suitable for surface mounting. This component is widely utilized in backlight applications across various industries. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Voltage - Output | 8V ~ 60V |
| Mounting Type | Surface Mount |
| Number of Outputs | 10 |
| Frequency | - |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 80mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 32-QFN-EP (5x5) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 7V |
| Voltage - Supply (Max) | 28V |
