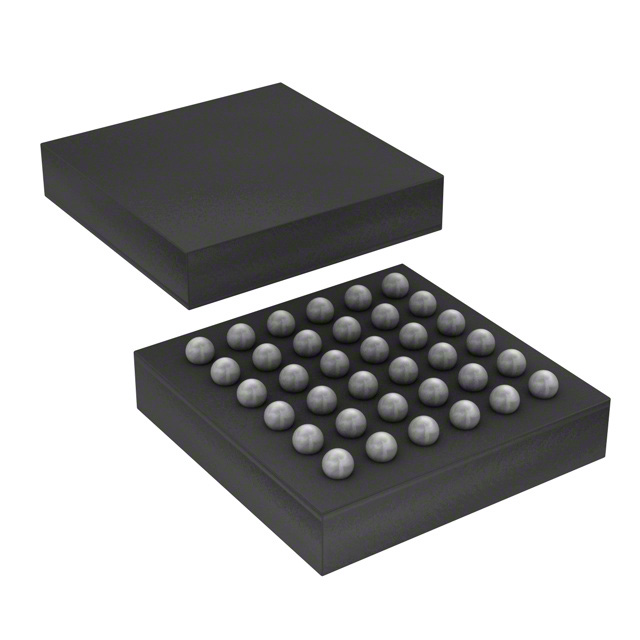

PCAL6524EVJ
IC XPNDR 1MHZ I2C 36VFBGAManufacturer: NXP USA Inc.
Categories: I/O Expanders
Quality Control: Learn More
I/O Expander 24 I2C 1 MHz 36-VFBGA (2.6x2.6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | POR |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-VFBGA |
| Output Type | Open Drain, Push-Pull |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Number of I/O | 24 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Clock Frequency | 1 MHz |
| Interrupt Output | Yes |
| Supplier Device Package | 36-VFBGA (2.6x2.6) |
| Current - Output Source/Sink | - |
| Programmable | Not Verified |
