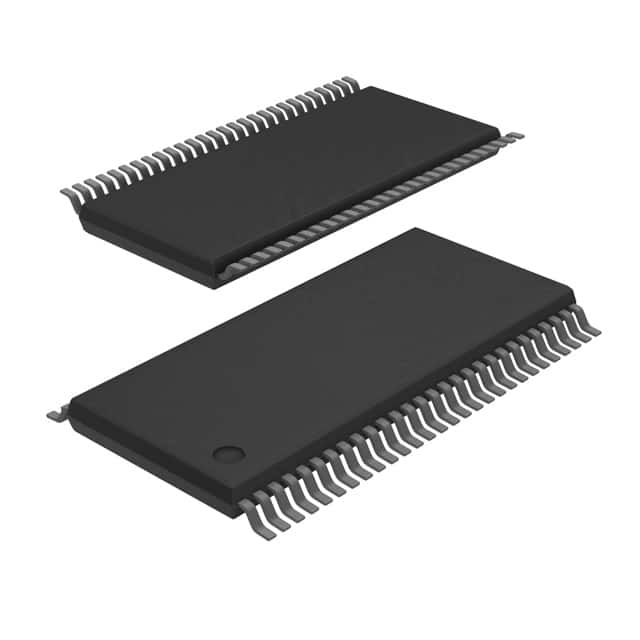

PCA9698DGG,512
IC XPNDR 1MHZ I2C 56TSSOPManufacturer: NXP USA Inc.
Categories: I/O Expanders
Quality Control: Learn More
I/O Expander 40 I2C 1 MHz 56-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | POR |
| Packaging | Tube |
| Package / Case | 56-TFSOP (0.240"", 6.10mm Width) |
| Output Type | Open Drain |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Number of I/O | 40 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 5.5V |
| Clock Frequency | 1 MHz |
| Interrupt Output | Yes |
| Supplier Device Package | 56-TSSOP |
| Current - Output Source/Sink | 10mA, 25mA |
| Programmable | Not Verified |
