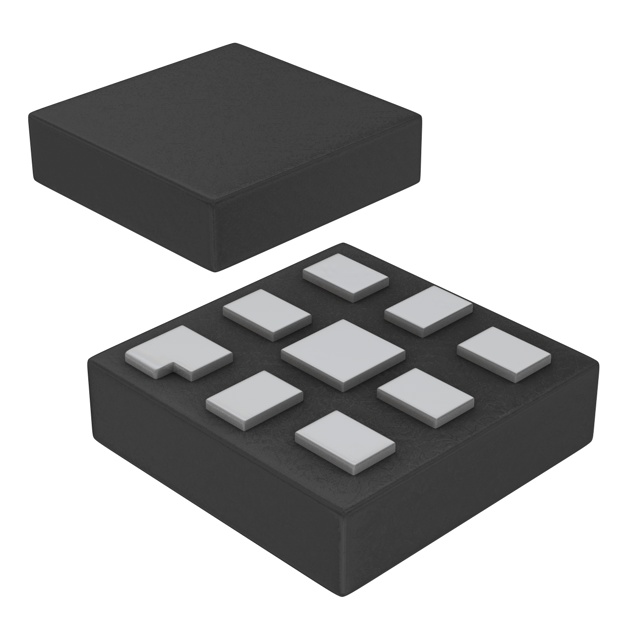

PCA9570GMH
IC XPNDR 100KHZ I2C SMBUS 8XQFNManufacturer: NXP USA Inc.
Categories: I/O Expanders
Quality Control: Learn More
I/O Expander 4 I2C, SMBus 100 kHz 8-XQFN (1.6x1.6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | POR |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFQFN Exposed Pad |
| Output Type | Push-Pull |
| Mounting Type | Surface Mount |
| Interface | I2C, SMBus |
| Number of I/O | 4 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.1V ~ 3.6V |
| Clock Frequency | 100 kHz |
| Interrupt Output | No |
| Supplier Device Package | 8-XQFN (1.6x1.6) |
| Current - Output Source/Sink | 4mA |
| Programmable | Not Verified |
