PCA9539BS,115
IC XPND 400KHZ I2C SMBUS 24HVQFNManufacturer: NXP USA Inc.
Categories: I/O Expanders
Quality Control: Learn More

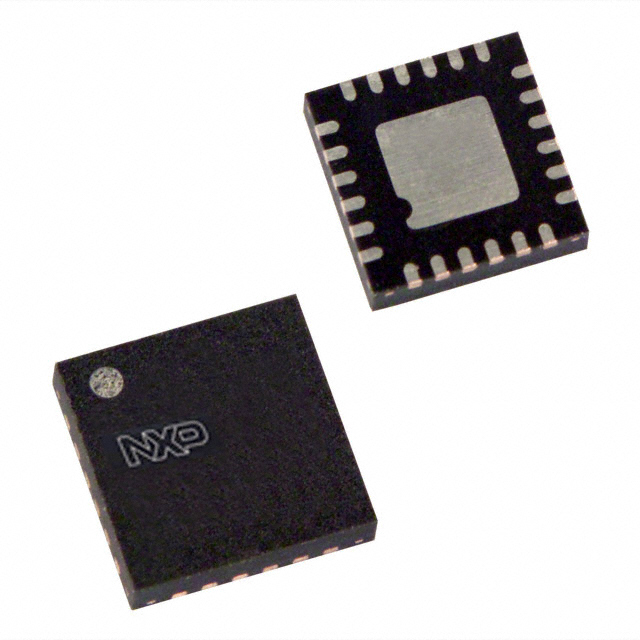

NXP USA Inc. PCA9539BS-115 is a 16-bit I/O expander designed for applications requiring expanded digital input/output capability. This device communicates via the I2C and SMBus interfaces, supporting clock frequencies up to 400 kHz. It features Power-On Reset (POR) for reliable initialization and provides push-pull output types with source/sink current capabilities of 10mA and 25mA respectively. The PCA9539BS-115 includes an interrupt output for efficient event reporting. Housed in a compact 24-HVQFN (4x4) surface-mount package, it operates within a voltage supply range of 2.3V to 5.5V and across an industrial temperature range of -40°C to 85°C. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems where flexible I/O management is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | POR |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad |
| Output Type | Push-Pull |
| Mounting Type | Surface Mount |
| Interface | I2C, SMBus |
| Number of I/O | 16 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 5.5V |
| Clock Frequency | 400 kHz |
| Interrupt Output | Yes |
| Supplier Device Package | 24-HVQFN (4x4) |
| Current - Output Source/Sink | 10mA, 25mA |
| Programmable | Not Verified |
