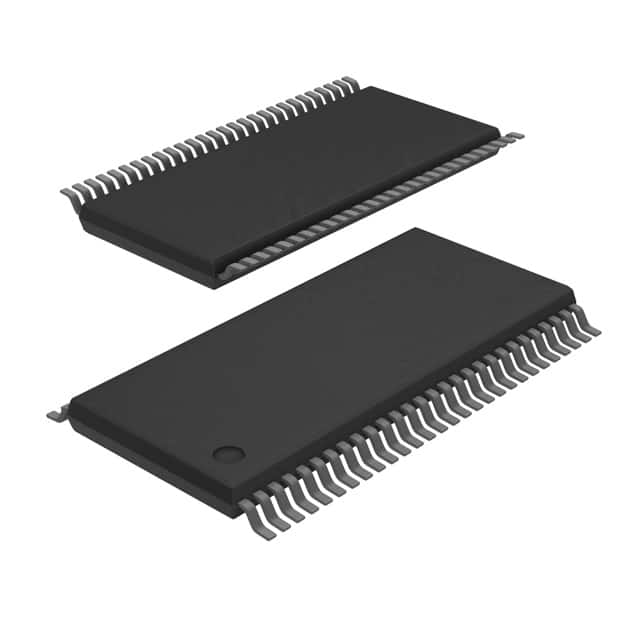

PCA9506DGG,518
IC XPNDR 400KHZ I2C 56TSSOPManufacturer: NXP USA Inc.
Categories: I/O Expanders
Quality Control: Learn More
I/O Expander 40 I2C 400 kHz 56-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | POR |
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-TFSOP (0.240"", 6.10mm Width) |
| Output Type | Push-Pull |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Number of I/O | 40 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 5.5V |
| Clock Frequency | 400 kHz |
| Interrupt Output | Yes |
| Supplier Device Package | 56-TSSOP |
| Current - Output Source/Sink | 10mA, 25mA |
| Programmable | Not Verified |
