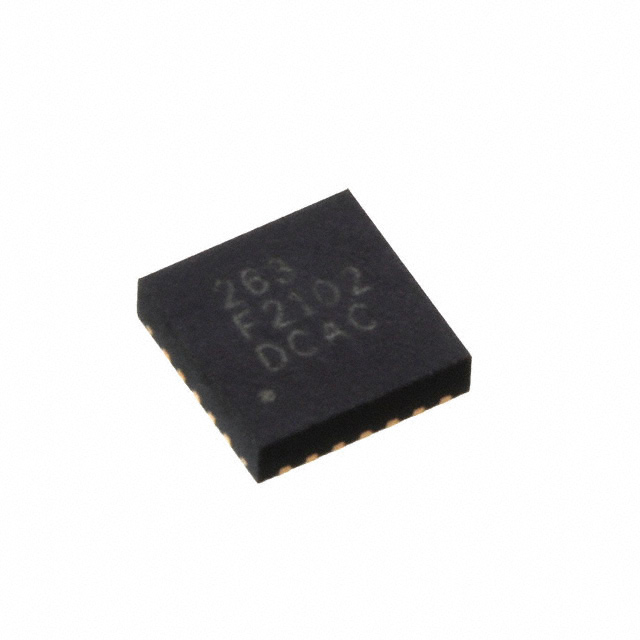

FXAS21002CQR1
GYROSCOPE 3-AXIS 24QFNManufacturer: NXP USA Inc.
Categories: Gyroscopes
Quality Control: Learn More
NXP USA Inc. FXAS21002CQR1 is a 3-axis digital gyroscope with selectable full-scale ranges of ±250, ±500, ±1000, and ±2000 degrees per second. This component offers adjustable bandwidths from 4Hz to 256Hz, facilitating optimization for various motion sensing applications. It supports both I2C and SPI serial interfaces for communication and is housed in a 24-QFN (4x4) package. Integrated features include a temperature sensor, sleep mode for power efficiency, and selectable scale for precise output. The FXAS21002CQR1 is suitable for use in automotive, industrial, and consumer electronics sectors requiring accurate angular rate sensing. Operating current is 2.7 mA, with a supply voltage range of 1.95V to 3.6V and an operating temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TFQFN Exposed Pad |
| Output Type | I2C, SPI |
| Type | Digital |
| Axis | X (Pitch), Y (Roll), Z (Yaw) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.95V ~ 3.6V |
| Bandwidth | 4Hz ~ 256Hz |
| Range °/s | ±250, 500, 1000, 2000 |
| Sensitivity (mV/°/s) | - |
| Sensitivity (LSB/(°/s)) | 16 ~ 128 |
| Current - Supply | 2.7 mA |
