MC33879TEK
IC SW SERIAL OCTAL 32SOICManufacturer: NXP USA Inc.
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More

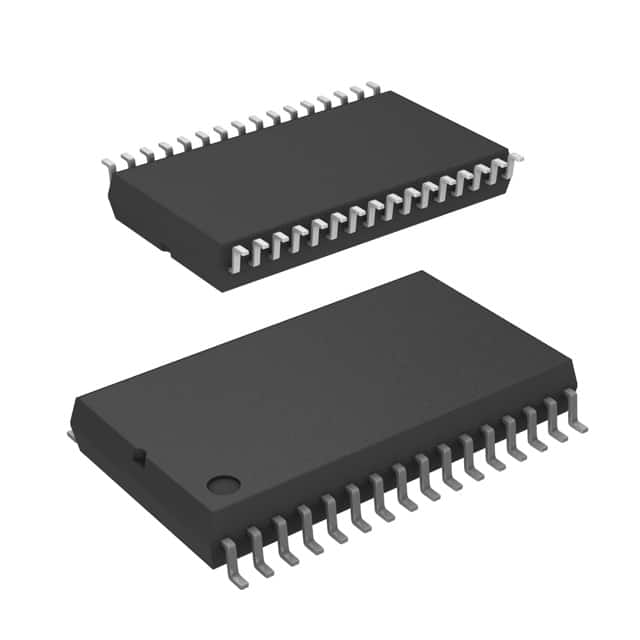

NXP USA Inc. MC33879TEK is an octal serial switch driver designed for demanding applications. This component features eight independent serial data inputs and outputs, enabling precise control in complex systems. With a peak output current capability of 1.2A and a low on-resistance of 750mOhm (typical), it is well-suited for driving various loads. The device operates across a wide voltage supply range of 5.5V to 26.5V and maintains functionality within an extended temperature range of -40°C to 125°C. Its 32-SOIC package with an exposed pad, specifically the 32-BSSOP (0.295", 7.50mm Width) type, facilitates efficient thermal management and robust surface mount integration. This driver is commonly found in automotive systems and industrial automation where reliable, high-performance switching is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-BSSOP (0.295"", 7.50mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 5.5V ~ 26.5V |
| Rds On (Typ) | 750mOhm |
| Current - Output / Channel | - |
| Current - Peak Output | 1.2A |
| Supplier Device Package | 32-SOIC |
