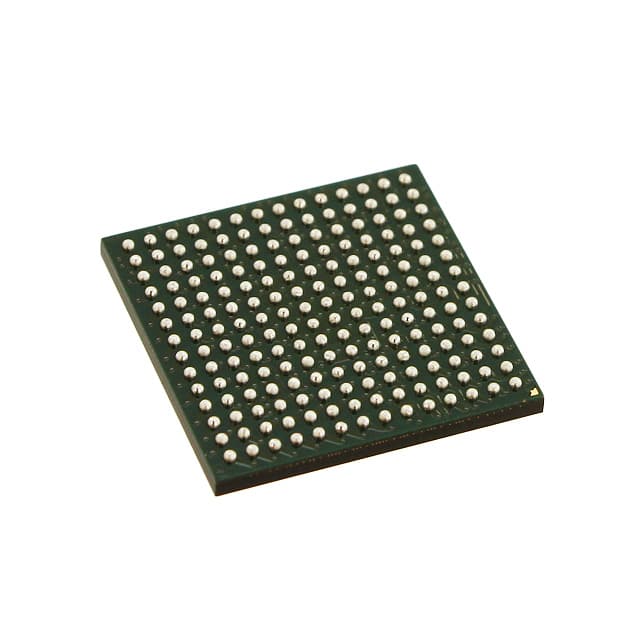

DSP56321VF275
IC DSP 24BIT 275MHZ 196MAPBGAManufacturer: NXP USA Inc.
Categories: DSP (Digital Signal Processors)
Quality Control: Learn More
NXP USA Inc. DSP56321VF275, a member of the DSP56K/Symphony series, is a high-performance 24-bit fixed-point digital signal processor. Operating at a clock rate of 275MHz, this device offers a robust 576kB of on-chip RAM and 576B of ROM for program storage. Key interfaces include a Host Interface, Synchronous Serial Interface (SSI), and Serial Communication Interface (SCI), enabling versatile system integration. The DSP56321VF275 is designed for surface mounting within a 196-MAPBGA (15x15) package, suitable for demanding applications across industries such as telecommunications, audio processing, and industrial control. It operates with a core voltage of 1.60V and an I/O voltage of 3.30V, with an extended operating temperature range of -40°C to 100°C (TJ).
Additional Information
Series: DSP56K/SymphonyRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-BGA |
| Mounting Type | Surface Mount |
| Interface | Host Interface, SSI, SCI |
| Type | Fixed Point |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Non-Volatile Memory | ROM (576B) |
| On-Chip RAM | 576kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.60V |
| Clock Rate | 275MHz |
| Supplier Device Package | 196-MAPBGA (15x15) |
