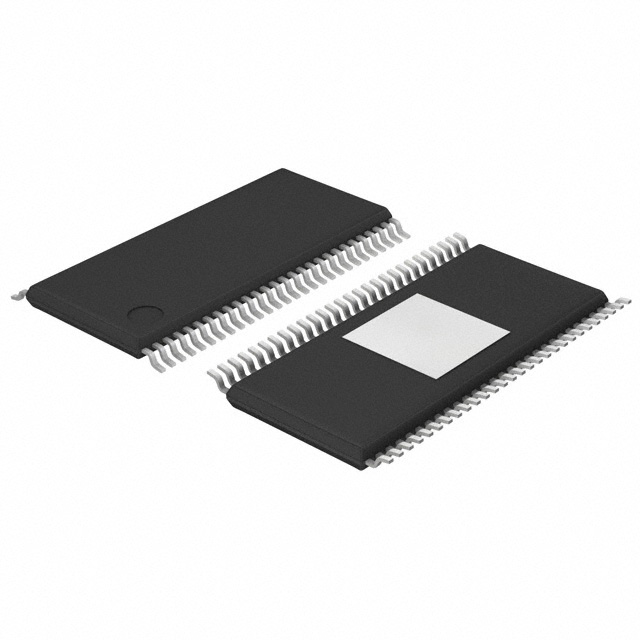

PCF8576CTT/1,118
IC DRVR 7 SEGMENT 56HTSSOPManufacturer: NXP USA Inc.
Categories: Display Drivers
Quality Control: Learn More
NXP USA Inc. PCF8576CTT-1-118 is a versatile LCD driver designed for driving multiple segments and common lines of a static, multiplexed, or barely dynamic LCD. This component supports various configurations including 7-segment with decimal point (DP), 14-segment with DP and address pointer (AP), and dot matrix displays. It features an I2C interface for efficient communication and operates over a voltage supply range of 2V to 6V. With a low supply current of 120 µA, it is suitable for power-sensitive applications. The PCF8576CTT-1-118 can drive up to 10 characters, 20 characters, or 160 individual elements. Packaged in a 56-HTSSOP with an exposed pad, this device is intended for surface mounting. Its operating temperature range is -40°C to 85°C. This display driver is commonly employed in applications such as portable instrumentation, point-of-sale terminals, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-TFSOP (0.240"", 6.10mm Width) Exposed Pad |
| Display Type | LCD |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Configuration | 7 Segment + DP, 14 Segment + DP + AP, Dot Matrix |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 6V |
| Digits or Characters | 10 Characters, 20 Characters, 160 Elements |
| Supplier Device Package | 56-HTSSOP |
| Current - Supply | 120 µA |
