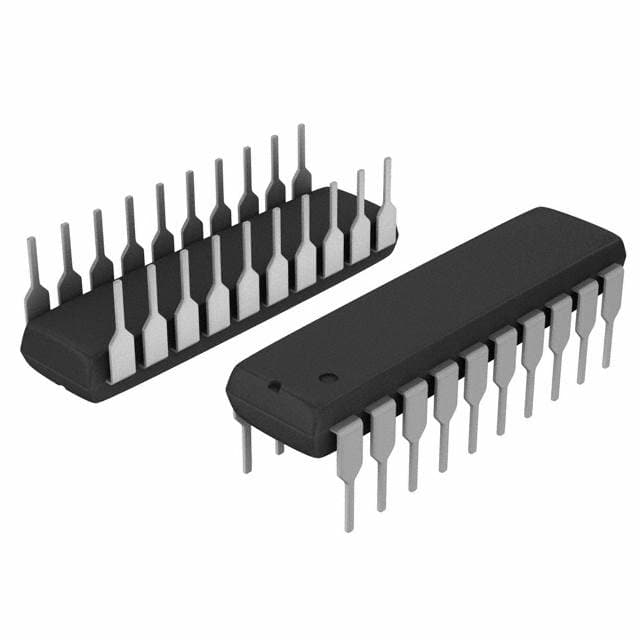

MC14489BPE

IC DRVR 7 SEGMENT 20DIP

Quality Control: Learn More

The NXP USA Inc. MC14489BPE is a 7-segment LED driver designed for through-hole mounting. This electronic component, packaged in a 20-PDIP (0.300", 7.62mm) configuration, features a serial interface for control. Operating within a supply voltage range of 4.5V to 5.5V, it exhibits a typical supply current of 5.5 mA. The MC14489BPE is suitable for applications requiring the driving of 7-segment LED displays across a broad operating temperature range from -40°C to 130°C. Its robust design makes it a reliable choice for various industrial and consumer electronics segments that utilize LED display technology.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tube

Download Free CAD Model:

Technical Details:

Packaging	Tube
Package / Case	20-DIP (0.300"", 7.62mm)
Display Type	LED
Mounting Type	Through Hole
Interface	Serial
Configuration	7 Segment
Operating Temperature	-40°C ~ 130°C
Voltage - Supply	4.5V ~ 5.5V
Digits or Characters	-
Supplier Device Package	20-PDIP
Current - Supply	5.5 mA
