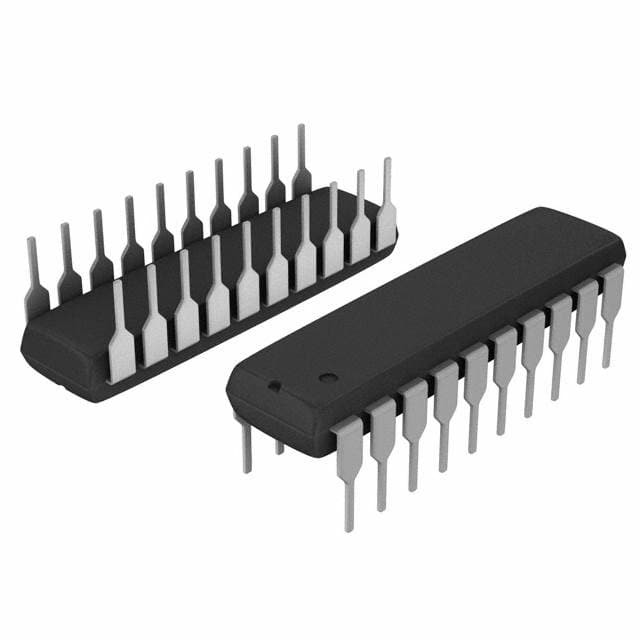

MC14489BP
IC DRVR 7 SEGMENT 20DIPManufacturer: NXP USA Inc.
Categories: Display Drivers
Quality Control: Learn More
The NXP USA Inc. MC14489BP is a versatile LED driver designed for direct interface with 7-segment displays. This component, packaged in a 20-PDIP through-hole configuration, operates efficiently within a 4.5V to 5.5V supply range, drawing a nominal 5.5 mA. Its serial interface simplifies integration into various control systems. Commonly found in industrial automation, test and measurement equipment, and consumer electronics, the MC14489BP provides reliable driving capabilities for LED displays. The 20-DIP (0.300", 7.62mm) package is suitable for robust board mounting.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Display Type | LED |
| Mounting Type | Through Hole |
| Interface | Serial |
| Configuration | 7 Segment |
| Operating Temperature | -40°C ~ 130°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Digits or Characters | - |
| Supplier Device Package | 20-PDIP |
| Current - Supply | 5.5 mA |
