PCA9411UKZ
IC REG BOOST 5.25V 500MA 9WLCSPManufacturer: NXP USA Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
NXP USA Inc.'s PCA9411UKZ is a high-efficiency, synchronous boost converter designed for step-up voltage conversion. This device provides a fixed 5.25V output at up to 500mA, with a switching frequency of 3MHz. The internal synchronous rectification ensures optimal efficiency, minimizing power loss. Operating from an input voltage range of 2.5V to 5.25V, the PCA9411UKZ is suitable for applications requiring a stable voltage in a compact form factor. Its 9-WLCSP package, measuring 1.24x1.24mm, is ideal for space-constrained designs. The PCA9411UKZ is commonly utilized in portable electronics, mobile devices, and other power management solutions where size and efficiency are critical. This component is supplied in a Tape & Reel (TR) package and operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-UFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 3MHz |
| Voltage - Input (Max) | 5.25V |
| Topology | Boost |
| Supplier Device Package | 9-WLCSP (1.24x1.24) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 5.25V |
Request a Quote
Clients Also Buy
DC6M501X6/12S,135
IC REG BUCK 1.2V 500MA 6WLCSP
MC34726CFCR2
IC REG BUCK 3.3V 300MA 8USON

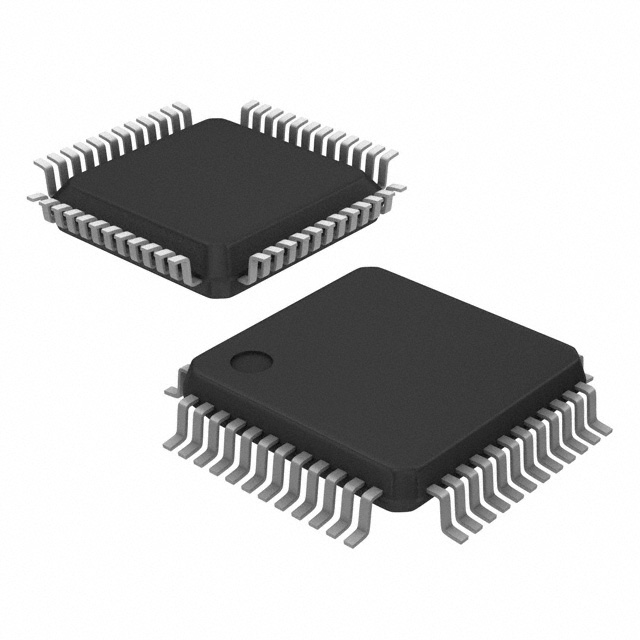

UJA1131AHW/3F0/0Y
