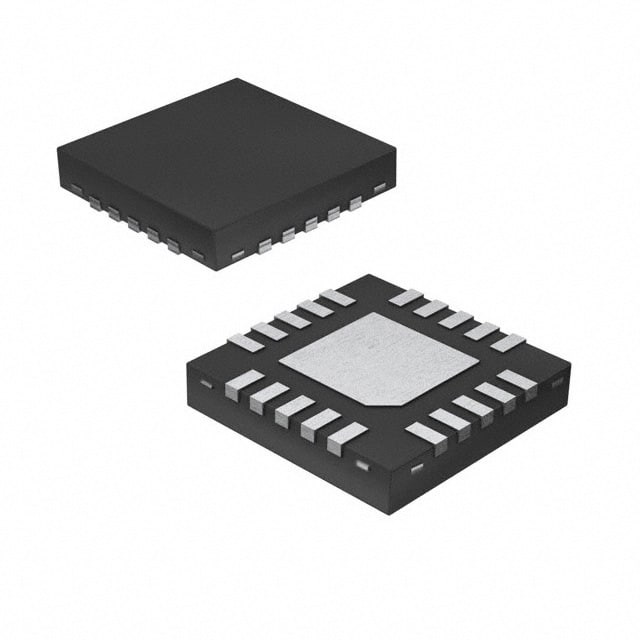

SGTL5000XNLA3R2
IC AUDIO CODEC STEREO 20-QFNManufacturer: NXP USA Inc.
Categories: CODECS
Quality Control: Learn More
NXP USA Inc. SGTL5000XNLA3R2 is a stereo audio codec with an I2C, Serial, and SPI™ interface, housed in a 20-QFN-EP (3x3) package. This surface-mount component features 1 ADC and 1 DAC, offering typical Signal-to-Noise ratios of 90 dB for ADCs and 100 dB for DACs. Analog supply voltage ranges from 1.62V to 3.6V, while digital supply can be 1.1V to 2V or 1.62V to 3.6V. The operating temperature range is -40°C to 85°C. This device is commonly utilized in consumer electronics and automotive audio systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-UFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | I2C, Serial, SPI™ |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.62V ~ 3.6V |
| Voltage - Supply, Digital | 1.1V ~ 2V, 1.62V ~ 3.6V |
| Resolution (Bits) | - |
| Dynamic Range, ADCs / DACs (db) Typ | - |
| Number of ADCs / DACs | 1 / 1 |
| S/N Ratio, ADCs / DACs (db) Typ | 90 / 100 |
| Sigma Delta | No |
| Supplier Device Package | 20-QFN-EP (3x3) |
Request a Quote
