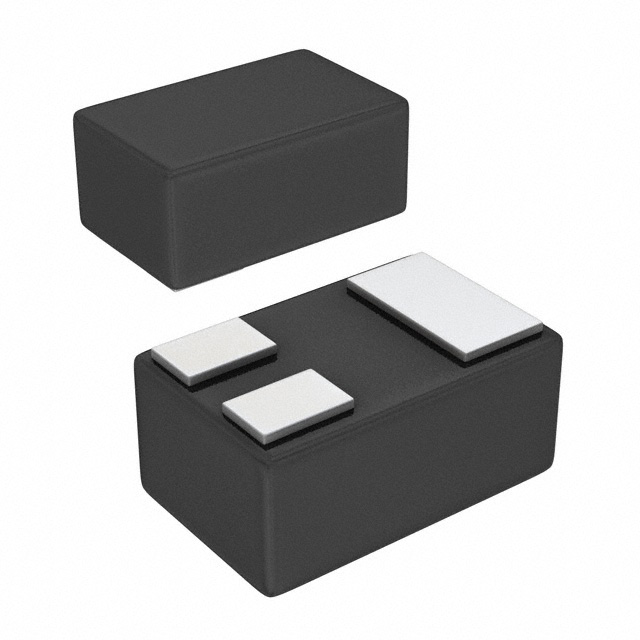

BFU730LXZ
RF TRANS NPN 3V 53GHZ 3DFN1006Manufacturer: NXP USA Inc.
Categories: Bipolar RF Transistors
Quality Control: Learn More
RF Transistor NPN 3V 30mA 53GHz 160mW Surface Mount DFN1006C-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | - |
| Gain | 15.8dB |
| Power - Max | 160mW |
| Current - Collector (Ic) (Max) | 30mA |
| Voltage - Collector Emitter Breakdown (Max) | 3V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 205 @ 2mA, 3V |
| Frequency - Transition | 53GHz |
| Noise Figure (dB Typ @ f) | 0.75dB @ 6GHz |
| Supplier Device Package | DFN1006C-3 |
