BFS520,135

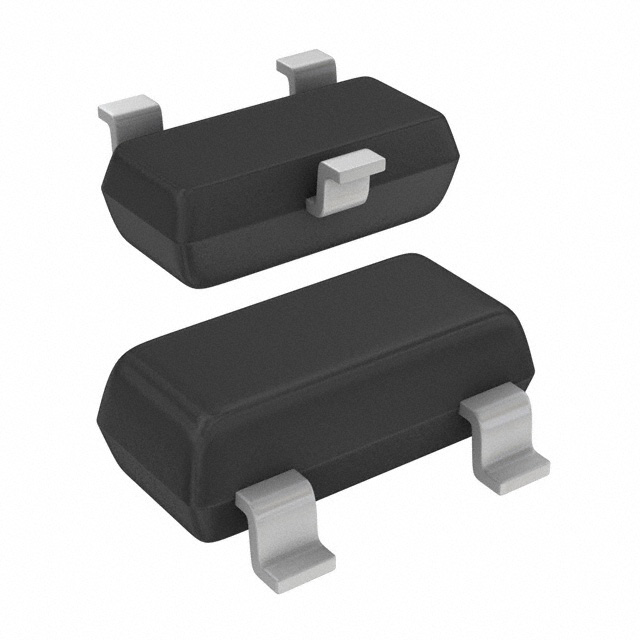

RF TRANS NPN 15V 9GHZ SOT323-3Manufacturer: NXP USA Inc.
Categories: Bipolar RF Transistors
Quality Control: Learn More
NXP USA Inc. BFS520-135 is an NPN bipolar RF transistor designed for high-frequency applications. This RoHS-compliant component features a 15V collector-emitter breakdown voltage and a maximum collector current of 70mA. With a transition frequency of 9GHz and a power dissipation rating of 300mW, it is suitable for demanding RF circuitry. The BFS520-135 exhibits a typical noise figure ranging from 1.1dB to 2.1dB at 900MHz and a minimum DC current gain of 60 at 20mA and 6V. Packaged in an SC-70 (SOT-323) surface-mount case, this device is supplied on tape and reel. Its specifications make it a viable option for use in wireless communications and other radio frequency systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 175°C (TJ) |
| Gain | - |
| Power - Max | 300mW |
| Current - Collector (Ic) (Max) | 70mA |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 20mA, 6V |
| Frequency - Transition | 9GHz |
| Noise Figure (dB Typ @ f) | 1.1dB ~ 2.1dB @ 900MHz |
| Supplier Device Package | SC-70 |
