MC33771BTP2AE

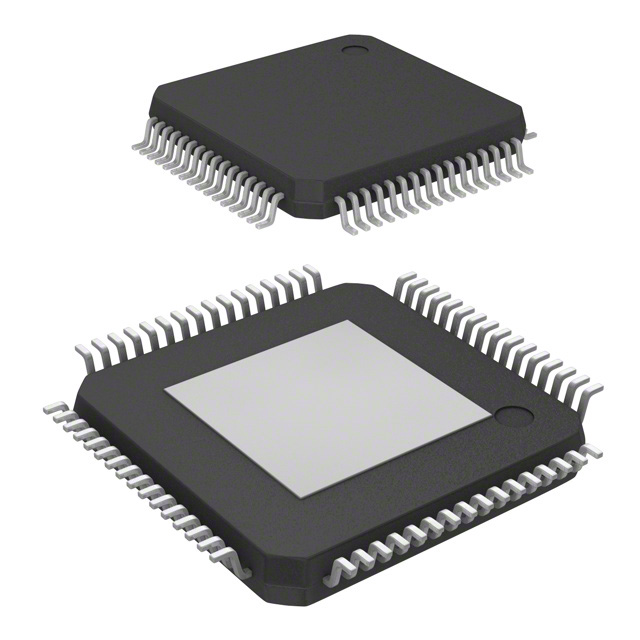

IC BAT CNTRL LI-ION 7-14C 64LQFPManufacturer: NXP USA Inc.
Categories: Battery Management
Quality Control: Learn More
NXP USA Inc.'s MC33771BTP2AE is a high-performance battery cell controller IC designed for Lithium Ion battery packs. This component is qualified to AEC-Q100 standards and is suitable for automotive applications. It offers precise monitoring and control for battery systems with 7 to 14 cells. The MC33771BTP2AE features over/under voltage fault protection and communicates via the TPL interface. Its functionality as a battery cell controller makes it ideal for complex battery management systems. The device is supplied in a 64-LQFP (10x10) exposed pad package, designed for surface mounting. Operating across a temperature range of -40°C to 105°C (TA), this component is a robust solution for demanding battery applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP Exposed Pad |
| Number of Cells | 7 ~ 14 |
| Mounting Type | Surface Mount |
| Function | Battery Cell Controller |
| Interface | TPL |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 64-LQFP (10x10) |
| Fault Protection | Over/Under Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
