MC33771BSP1AER2
IC BAT CNTRL LI-ION 7-14C 64LQFPManufacturer: NXP USA Inc.
Categories: Battery Management
Quality Control: Learn More

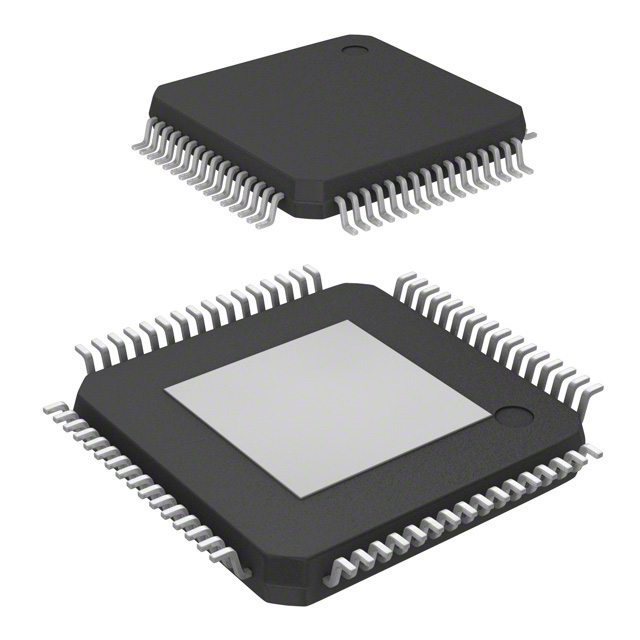

NXP USA Inc.'s MC33771BSP1AER2 is a high-performance battery cell controller IC designed for Lithium-Ion battery packs. This component is engineered to manage battery packs with 7 to 14 series cells, offering precise voltage monitoring and fault protection against over- and under-voltage conditions. Featuring a 64-LQFP (10x10) exposed pad surface-mount package, it ensures robust thermal performance. The device communicates via an SPI interface, facilitating seamless integration into complex automotive systems. Qualified to AEC-Q100 standards, the MC33771BSP1AER2 is suitable for demanding automotive applications requiring reliable battery management. Its operating temperature range of -40°C to 105°C (TA) further underscores its suitability for critical automotive environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-LQFP Exposed Pad |
| Number of Cells | 7 ~ 14 |
| Mounting Type | Surface Mount |
| Function | Battery Cell Controller |
| Interface | SPI |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 64-LQFP (10x10) |
| Fault Protection | Over/Under Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
