TDF8599ATH/N2CY
IC AMP D MONO/STEREO 250W 36HSOPManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More

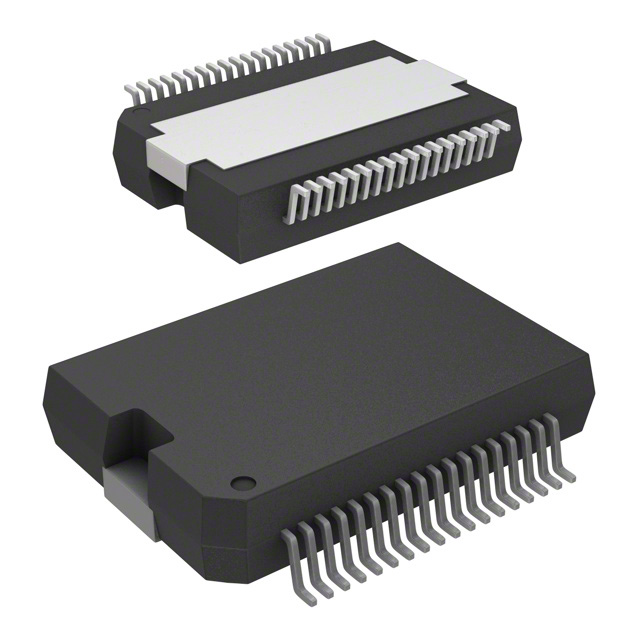

The NXP USA Inc. TDF8599ATH-N2CY is a highly efficient Class D amplifier IC designed for versatile audio applications. This component offers flexible configuration as either a 1-channel mono or 2-channel stereo amplifier. It delivers a maximum output power of 250W into a 2-ohm load in mono mode, and 135W per channel into a 4-ohm load in stereo mode. Operating from a wide supply voltage range of 8V to 35V, the TDF8599ATH-N2CY features include differential inputs, I2C control, mute functionality, and integrated protection against short-circuits and thermal overload. Depop circuitry is also incorporated to minimize audible transients during power-up and power-down. This device is supplied in a 36-HSOP package with an exposed pad for enhanced thermal management, suitable for surface mounting. It finds application in automotive audio systems and professional audio equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSSOP (0.433"", 11.00mm Width) Exposed Pad |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Voltage - Supply | 8V ~ 35V |
| Max Output Power x Channels @ Load | 250W x 1 @ 2Ohm; 135W x 2 @ 4Ohm |
| Supplier Device Package | 36-HSOP |
