TDF8546ATH/N1ZJ
IC AMP CLASS AB QUAD 25W 36HSOPManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
NXP USA Inc.'s TDF8546ATH-N1ZJ is a quad-channel Class AB audio amplifier IC. This component delivers 25W per channel into a 4 Ohm load, supporting a supply voltage range of 6V to 18V. Designed for robust operation, it features integrated depop, short-circuit, and thermal protection mechanisms. The device is housed in a 36-HSOP (36-BSSOP) surface-mount package with an exposed pad for enhanced thermal dissipation. This amplifier IC is suitable for applications in automotive audio systems and other demanding consumer electronics where high-quality, reliable audio amplification is critical. The TDF8546ATH-N1ZJ is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Depop, Short-Circuit and Thermal Protection |
| Packaging | Tape & Reel (TR) |

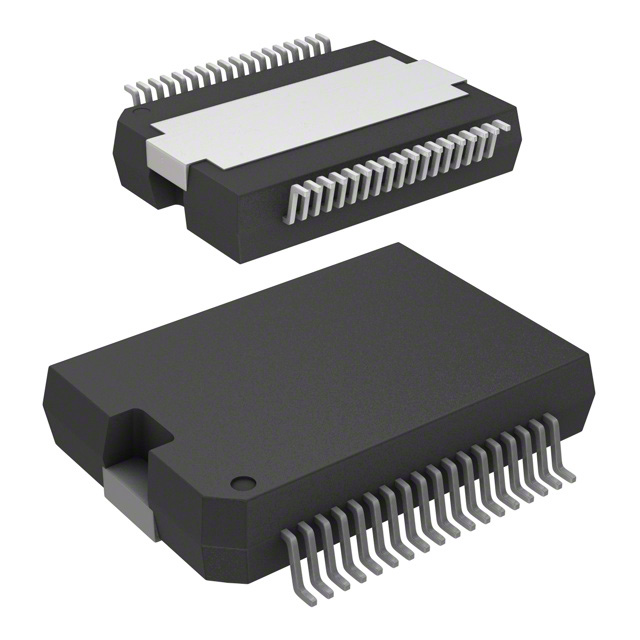

| Package / Case | 36-BSSOP (0.433"", 11.00mm Width) Exposed Pad |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | - |
| Voltage - Supply | 6V ~ 18V |
| Max Output Power x Channels @ Load | 25W x 4 @ 4Ohm |
| Supplier Device Package | 36-HSOP |
