TDF8544J/N2,112
IC AMP CLASS AB QUAD 28W DBS27PManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More

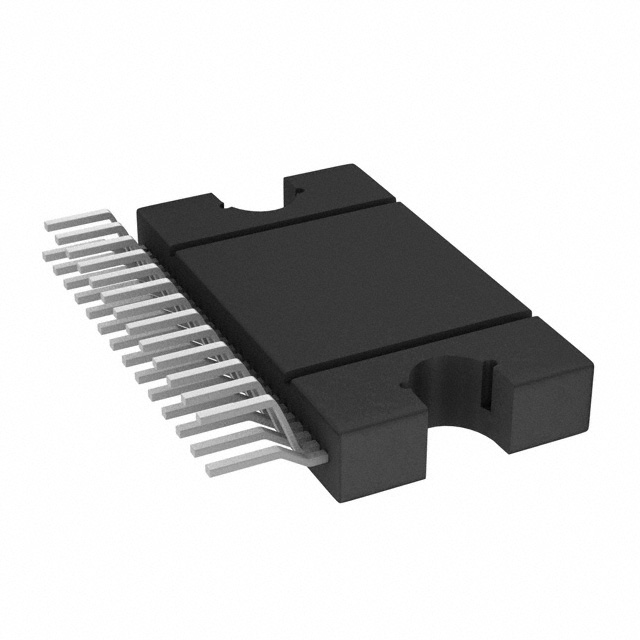

NXP USA Inc. TDF8544J-N2-112 is a quad-channel Class AB audio amplifier integrated circuit. This component, housed in a DBS27P package, delivers up to 28W per channel into a 4-ohm load. Key features include I2C control for configuration, integrated depop and mute functions, and comprehensive protection against short-circuit and thermal events, along with a standby mode. Designed for through-hole mounting, it operates from a 6V to 18V supply voltage. This amplifier IC is widely utilized in automotive audio systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Depop, I2C, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | 27-SIP, Formed Leads |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | - |
| Voltage - Supply | 6V ~ 18V |
| Max Output Power x Channels @ Load | 28W x 4 @ 4Ohm |
| Supplier Device Package | DBS27P |
