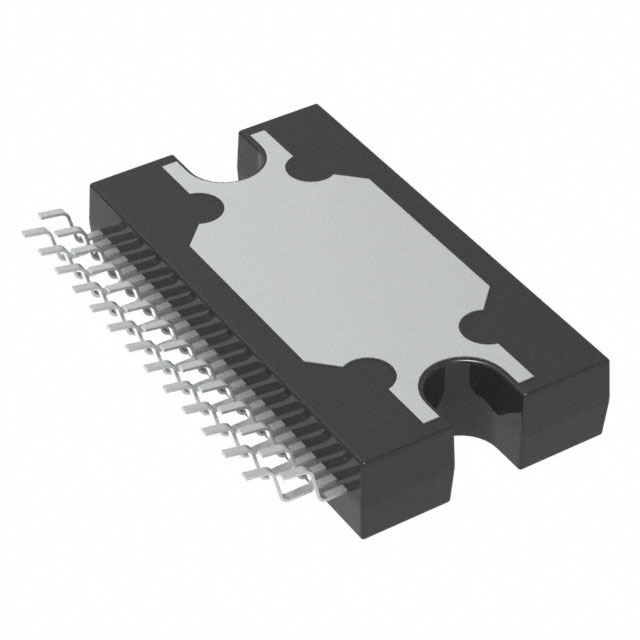

TDF8541JS/N2,512
IC AMP CLSS AB QUAD 64W 27DBSMSPManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
NXP USA Inc. TDF8541JS-N2-512 is a Class AB, quad-channel audio amplifier IC. This component features a 27-DBSMSP surface mount package designed for high-power audio applications. It delivers up to 64W per channel into a 2 Ohm load, supporting a supply voltage range of 6V to 18V. Key features include depop functionality for silent startup and shutdown, I2C control for configuration and diagnostics, mute functionality, and integrated short-circuit and thermal protection. A standby mode is also available for power efficiency. The TDF8541JS-N2-512 is suitable for automotive audio systems and other demanding audio amplification tasks. Operating temperature ranges from -40°C to 105°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, I2C, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | 27-PowerSMD Module |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 6V ~ 18V |
| Max Output Power x Channels @ Load | 64W x 4 @ 2Ohm |
| Supplier Device Package | 27-DBSMSP |
