TDF8532HH/N2/S710K
IC AMPLIFIER CLASS D 100HLQFPManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More

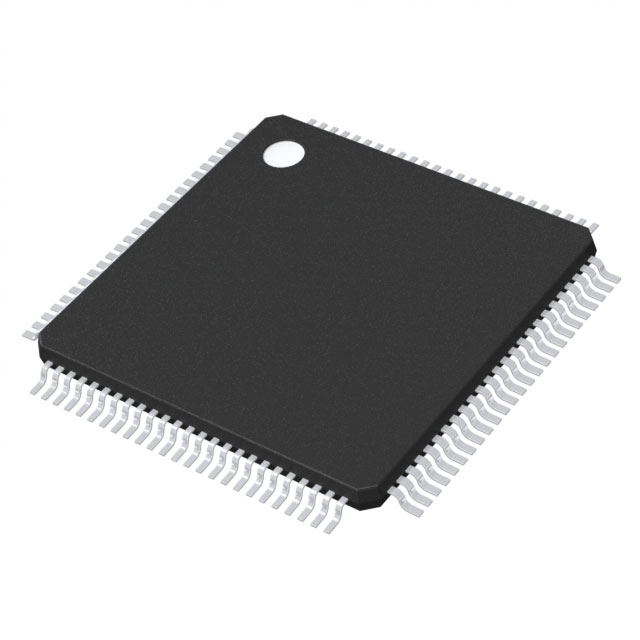

NXP USA Inc. TDF amplifier IC, part number TDF8532HH-N2-S710K, is a quad-channel Class D audio amplifier. This component is packaged in a 100-HLQFP (14x14) with an exposed pad, suitable for surface mounting. It offers a high output power capability of 80W per channel into a 2-ohm load, configurable for four independent channels. The TDF8532HH-N2-S710K operates across a supply voltage range of 5.5V to 25V. This device is leveraged in the automotive industry for advanced audio systems.
Additional Information
Series: TDFRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 100-FQFP Exposed Pad |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | - |
| Voltage - Supply | 5.5V ~ 25V |
| Max Output Power x Channels @ Load | 80W x 4 @ 2Ohm |
| Supplier Device Package | 100-HLQFP (14x14) |
