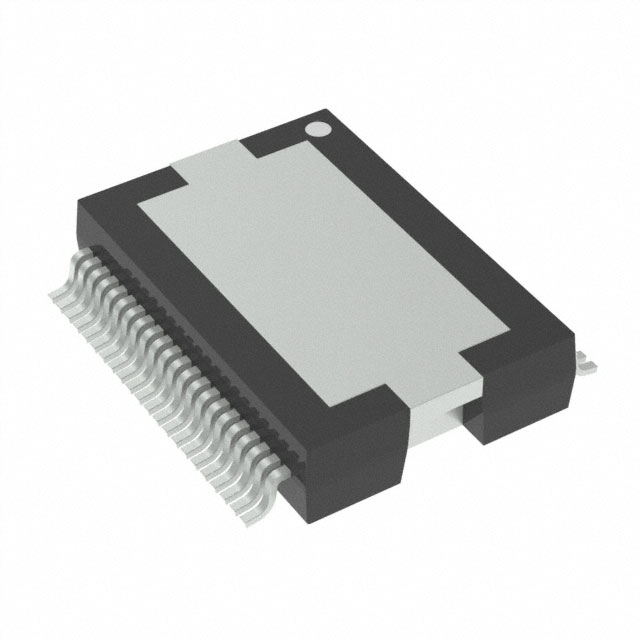

TDF8530TH/N1,518
IC AMP CLASS D QUAD 100W 44HSOPManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
NXP USA Inc. TDF8530TH-N1-518 is a quad-channel Class D audio amplifier, delivering 100W per channel into a 2-ohm load. This highly efficient amplifier IC features I2C control, mute functionality, and integrated protection against short circuits and thermal events, along with a standby mode for power management. Designed for surface mount applications, it is supplied in a 44-HSOP package with an exposed pad for enhanced thermal dissipation. The operating temperature range is -40°C to 85°C. This component is widely utilized in automotive audio systems and other demanding audio amplification applications where high power density and efficiency are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Depop, I2C, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-BSSOP (0.433"", 11.00mm Width) Exposed Pad |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 6V ~ 24V |
| Max Output Power x Channels @ Load | 100W x 4 @ 2Ohm |
| Supplier Device Package | 44-HSOP |
