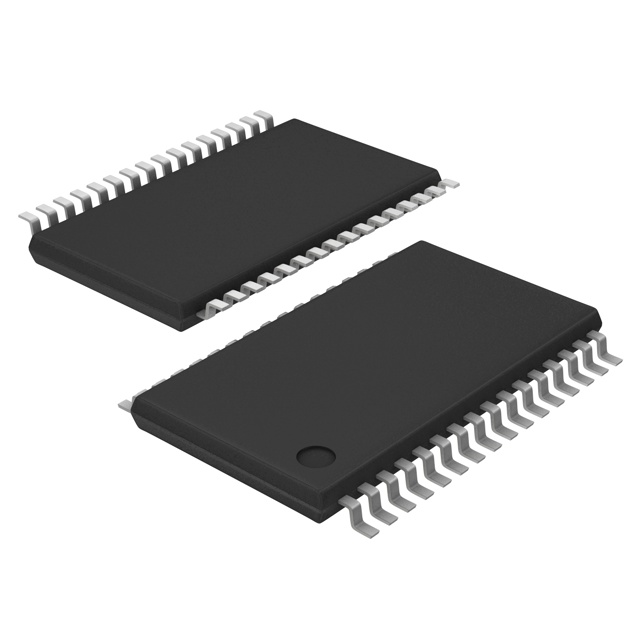

TDA8933BTW/N2,512
IC AMP D MON/STER 20.6W 32HTSSOPManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
NXP USA Inc. TDA8933BTW-N2-512 is a Class D audio amplifier IC engineered for high-efficiency audio amplification. This component offers flexible output configurations, supporting either 1-channel mono operation delivering up to 20.6W into a 16 Ohm load, or 2-channel stereo operation with 10.3W per channel into an 8 Ohm load. Key features include integrated depop, mute functionality, and comprehensive protection against short-circuits and thermal overload. Designed for surface mounting, it is housed in a 32-HTSSOP package with an exposed pad, suitable for demanding applications in consumer electronics and professional audio systems. The operating temperature range is -40°C to 85°C, and it accepts supply voltages from 10V to 36V or ±5V to ±18V. Differential inputs are supported for enhanced signal integrity.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection |
| Packaging | Tube |
| Package / Case | 32-TSSOP (0.240"", 6.10mm Width) Exposed Pad |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 10V ~ 36V, ±5V ~ 18V |
| Max Output Power x Channels @ Load | 20.6W x 1 @ 16Ohm; 10.3W x 2 @ 8Ohm |
| Supplier Device Package | 32-HTSSOP |
