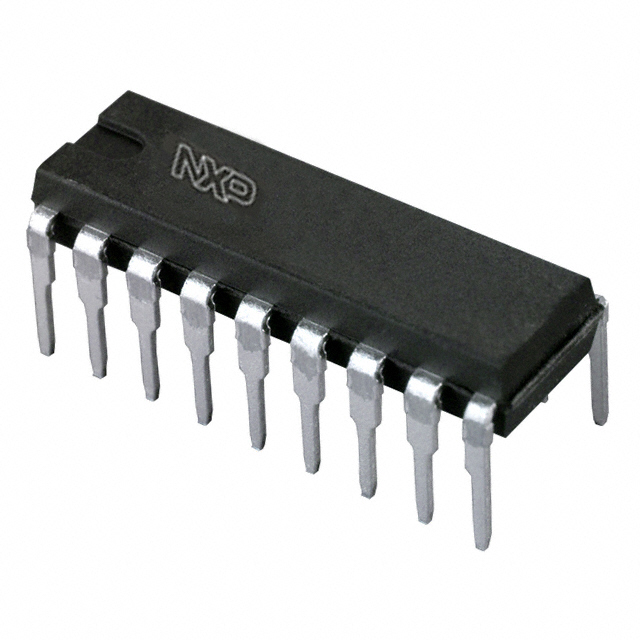

TDA1517P/N3,112
IC AMP CLASS B STEREO 6W 18HDIPManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
NXP USA Inc. TDA1512P-N3-112 is a Class B stereo audio amplifier IC. This component delivers 6W per channel into a 4-ohm load, suitable for applications requiring robust audio output. Key features include integrated depop, mute, short-circuit, and thermal protection circuitry, enhancing reliability and system integrity. A standby mode further contributes to power efficiency. The TDA1512P-N3-112 operates within a voltage supply range of 6V to 18V and is specified for an operating temperature range of -40°C to 85°C. The 18-HDIP package facilitates through-hole mounting. This amplifier is commonly utilized in consumer electronics, automotive audio systems, and professional audio equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Through Hole |
| Type | Class B |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 6V ~ 18V |
| Max Output Power x Channels @ Load | 6W x 2 @ 4Ohm |
| Supplier Device Package | 18-HDIP |
