TDA1308AUK,027
IC AMP CLASS AB STER 80MW 8WLCSPManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More

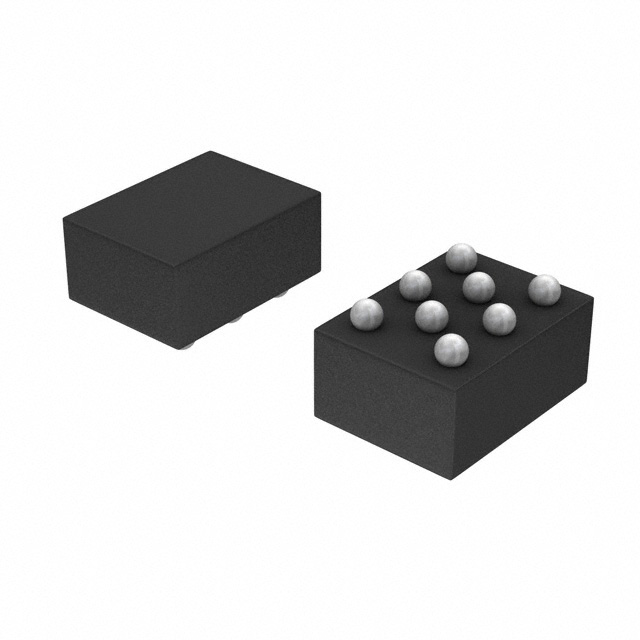

NXP USA Inc. TDA1308AUK-027 is an 80mW x 2 Class AB stereo headphone amplifier. This WLCSP package, measuring 0.61x0.84mm, provides 80mW of output power per channel into a 32-ohm load. Key features include integrated depop circuitry and short-circuit protection, ensuring reliable operation. The device supports a wide supply voltage range from 2.4V to 7V or ±1.2V to ±3.5V. Operating over a temperature range of -40°C to 85°C, the TDA1308AUK-027 is suitable for portable audio devices, mobile handsets, and other consumer electronics applications requiring efficient audio amplification in a compact footprint. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Short-Circuit Protection |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFBGA, WLCSP |
| Output Type | Headphones, 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.4V ~ 7V, ±1.2V ~ 3.5V |
| Max Output Power x Channels @ Load | 80mW x 2 @ 32Ohm |
| Supplier Device Package | 8-WLCSP (0.61x0.84) |
