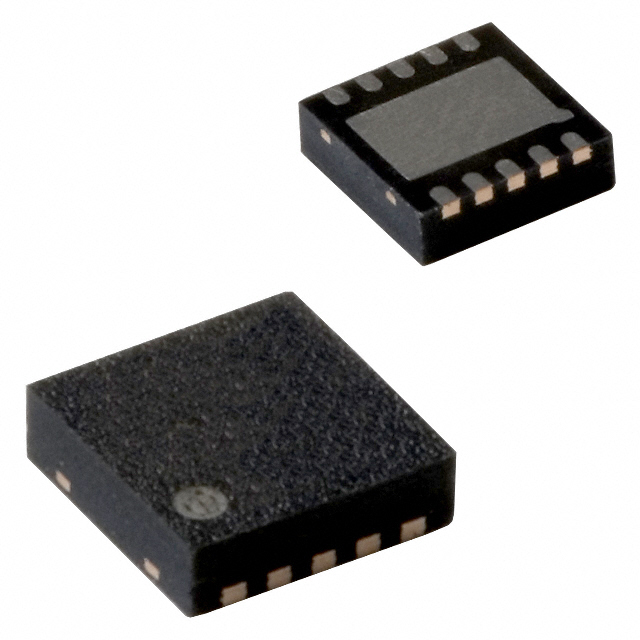

SA58672TK,138
IC AMP CLASS D MONO 3W 10HVSONManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
NXP USA Inc. SA58672TK-138 is a 3W, single-channel Class D audio amplifier IC. This component is housed in a compact 10-HVSON (3x3) package and features differential inputs for enhanced noise immunity. Designed for efficient operation, it provides a maximum output power of 3W into a 4 Ohm load. The SA58672TK-138 incorporates essential protection mechanisms, including short-circuit and thermal protection, along with a shutdown feature for power management. Its operating temperature range is -40°C to 85°C (TA), making it suitable for demanding applications. The supply voltage range is from 2V to 5.5V. This amplifier IC finds application in portable electronics, consumer audio devices, and automotive infotainment systems. The SA58672TK-138 is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2V ~ 5.5V |
| Max Output Power x Channels @ Load | 3W x 1 @ 4Ohm |
| Supplier Device Package | 10-HVSON (3x3) |
