SA58632BS,118
IC AMP CLSS AB STER 2.2W 20HVQFNManufacturer: NXP USA Inc.
Categories: Audio Amplifiers
Quality Control: Learn More

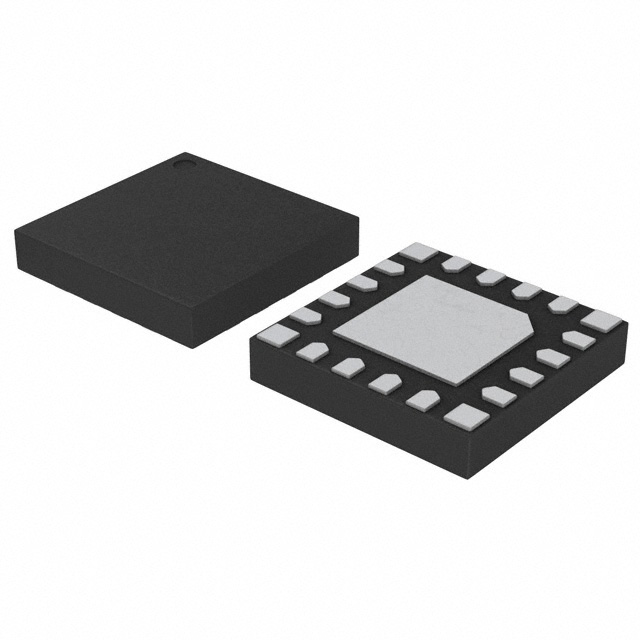

NXP USA Inc. SA58632BS-118 is a 2-channel Class AB audio amplifier IC. This device offers a maximum output power of 2.2W per channel into an 8-ohm load and operates over a supply voltage range of 2.2V to 18V. The SA58632BS-118 features include integral depop, mute, short-circuit, and thermal protection circuits, along with a standby mode for power efficiency. It is supplied in a 20-HVQFN (5x6) package with an exposed pad for enhanced thermal management, designed for surface-mount applications. The operating temperature range is -40°C to 85°C. This component is commonly utilized in consumer electronics and automotive audio systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VQFN Exposed Pad |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.2V ~ 18V |
| Max Output Power x Channels @ Load | 2.2W x 2 @ 8Ohm |
| Supplier Device Package | 20-HVQFN (5x6) |
