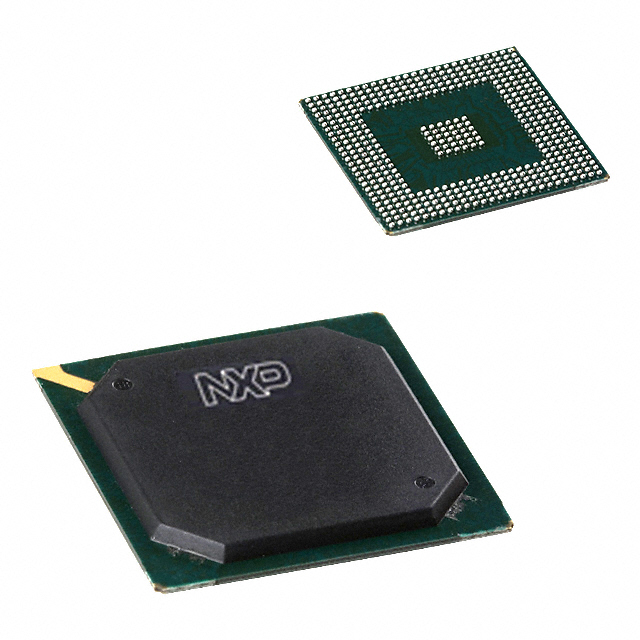

PNX1501E,557
IC MEDIA PROC 266MHZ 456-BGAManufacturer: NXP USA Inc.
Categories: Application Specific Microcontrollers
Quality Control: Learn More
The NXP USA Inc. PNX1501E-557, part of the PNX15xx series, is a highly integrated media processor designed for demanding multimedia applications. Featuring a TM3260 core processor operating at 266MHz, this component provides robust processing capabilities for advanced audio and video tasks. The device supports essential communication protocols including I2C and 2-Wire Serial interfaces, facilitating seamless integration into complex system architectures. Its 456-BGA (27x27) package with a surface mount type ensures efficient board space utilization and reliable connectivity. With 61 I/O pins, the PNX1501E-557 offers extensive interfacing options for peripheral devices. The operating temperature range of 0°C to 85°C and a supply voltage between 1.14V and 1.26V are suitable for a variety of consumer electronics and professional audio-visual equipment, including set-top boxes and digital media players. This component is supplied in a Tray package.
Additional Information
Series: PNX15xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 456-BGA |
| Mounting Type | Surface Mount |
| Interface | I2C, 2-Wire Serial |
| RAM Size | - |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply | 1.14V ~ 1.26V |
| Controller Series | Nexperia |
| Program Memory Type | - |
| Applications | Multimedia |
| Core Processor | TM3260 |
| Supplier Device Package | 456-BGA (27x27) |
| Number of I/O | 61 |
| Programmable | Not Verified |
