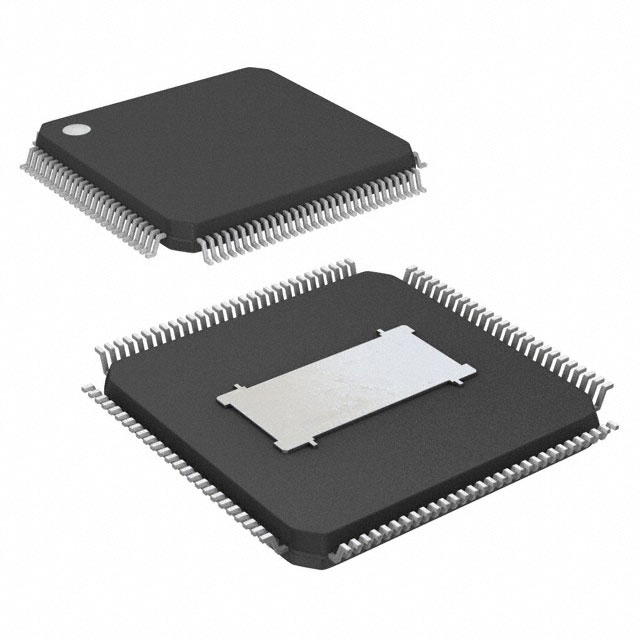

MM912KS812AMAF
IC MCU 16BIT HCS12 100LQFPManufacturer: NXP USA Inc.
Categories: Application Specific Microcontrollers
Quality Control: Learn More
NXP USA Inc. MM912KS812AMAF is a 16-bit microcontroller featuring the S12XS core. This device, with 256kB of FLASH program memory and 12kB of RAM, is designed for demanding automotive applications such as engine control. It offers a robust set of peripherals including CAN, SCI, and SPI interfaces for comprehensive system communication. The MM912KS812AMAF is housed in a 100-LQFP-EP (14x14) surface-mount package, ensuring efficient integration into compact designs. Operating across a wide temperature range of -40°C to 125°C and supporting a supply voltage from 4.7V to 36V, this component demonstrates high reliability for automotive environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | CAN, SCI, SPI |
| RAM Size | 12K x 8 |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.7V ~ 36V |
| Controller Series | HCS12 |
| Program Memory Type | FLASH (256kB) |
| Applications | Engine Control |
| Core Processor | S12XS |
| Supplier Device Package | 100-LQFP-EP (14x14) |
| Number of I/O | 6 |
| Programmable | Not Verified |
