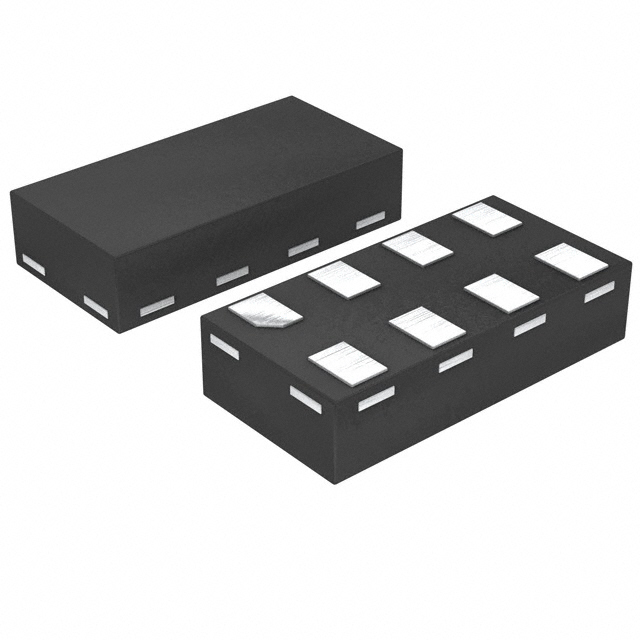

NX3L2T66GT,115
IC SW SPST-NOX2 750MOHM 8XSONManufacturer: NXP USA Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
2 Circuit IC Switch 1:1 750mOhm 8-XSON, SOT833-1 (1.95x1)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 750mOhm |
| -3db Bandwidth | 60MHz |
| Supplier Device Package | 8-XSON, SOT833-1 (1.95x1) |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 6pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 20mOhm |
| Switch Time (Ton, Toff) (Max) | 28ns, 20ns |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Number of Circuits | 2 |
